UNA-C6017
UNA
8528591090
Product Description

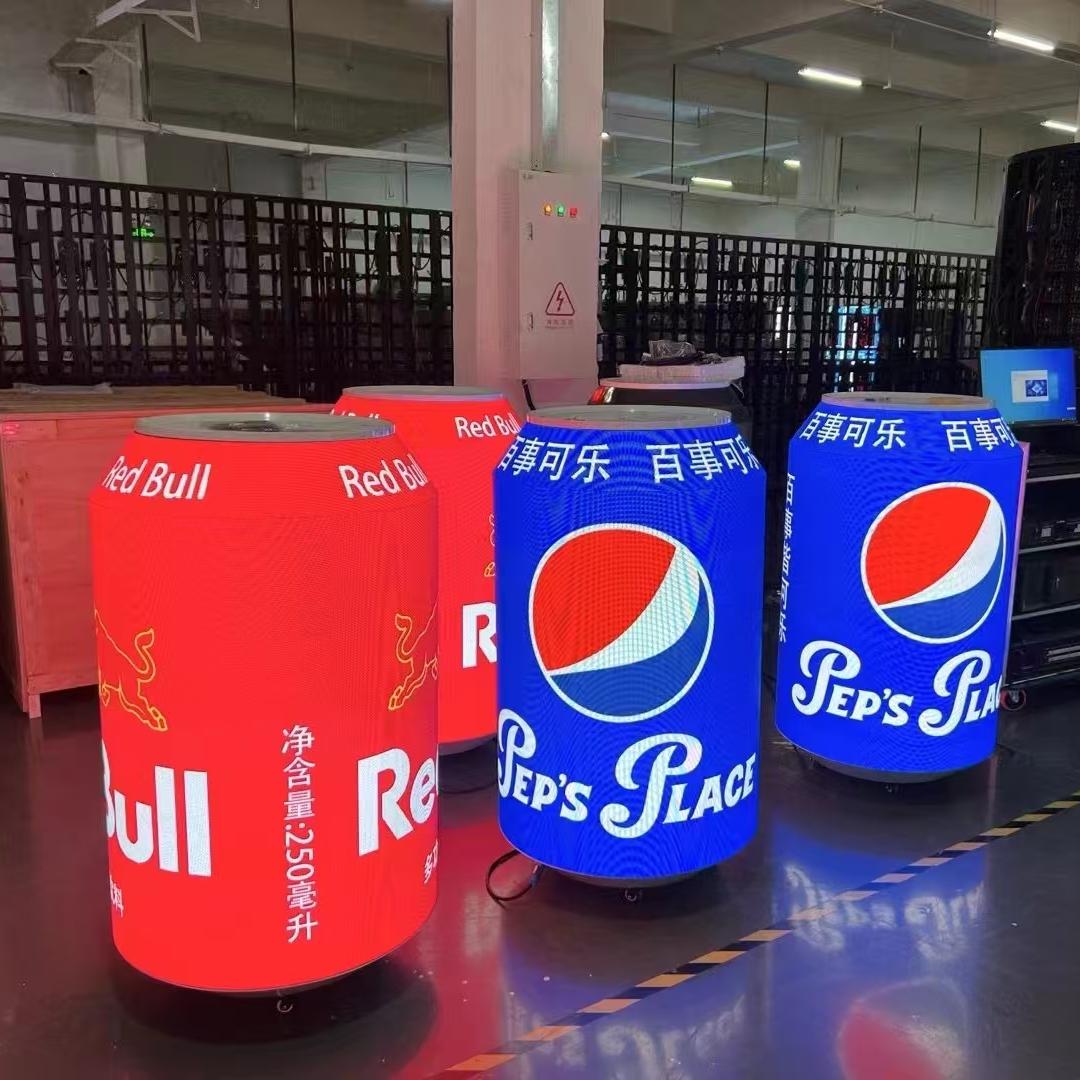

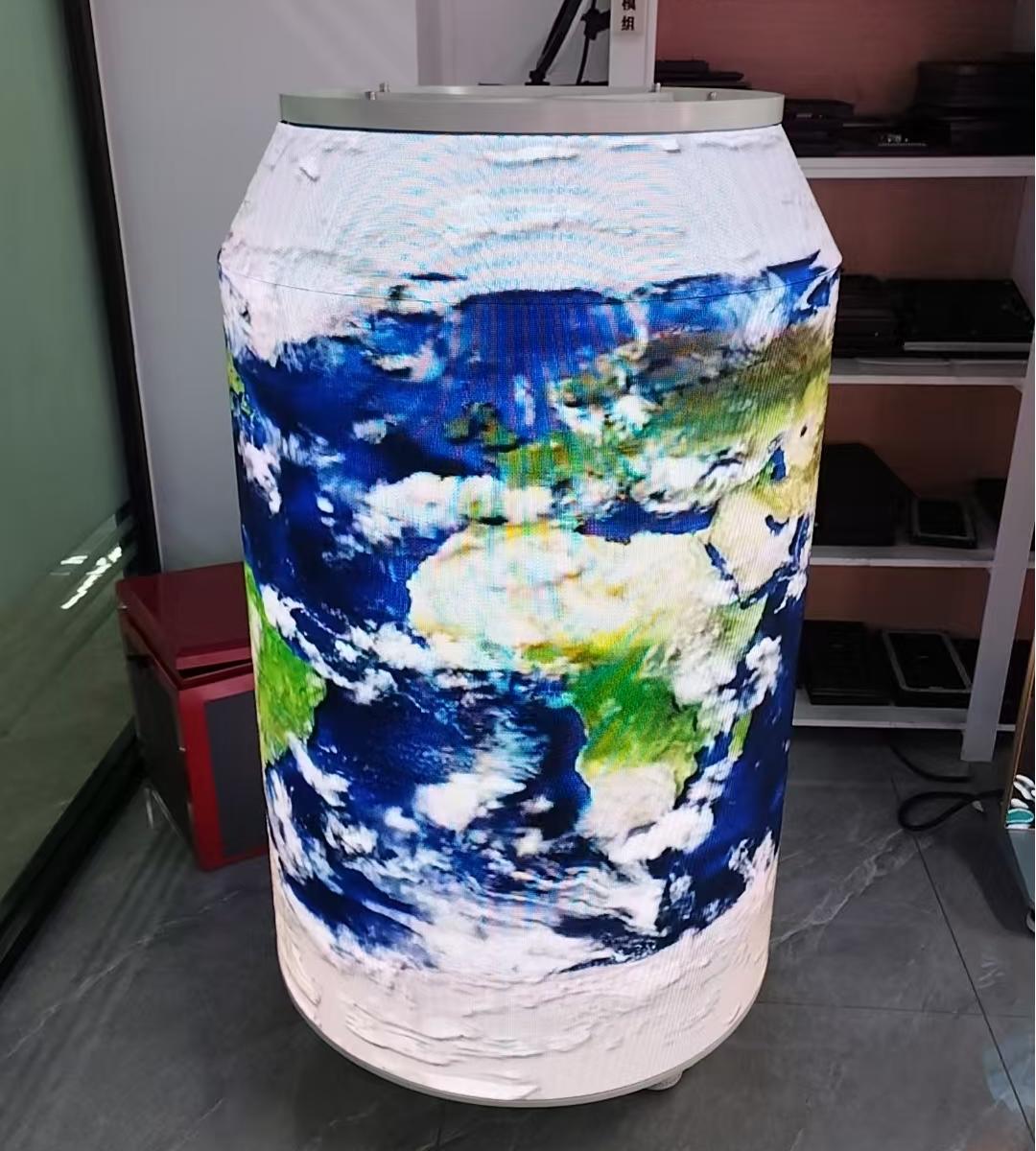

Indoor Digital Panel Media Display LED Can Video Screen
PRODUCT FEATURES:
With P1.86 or P2, SMD or GOB Optional;

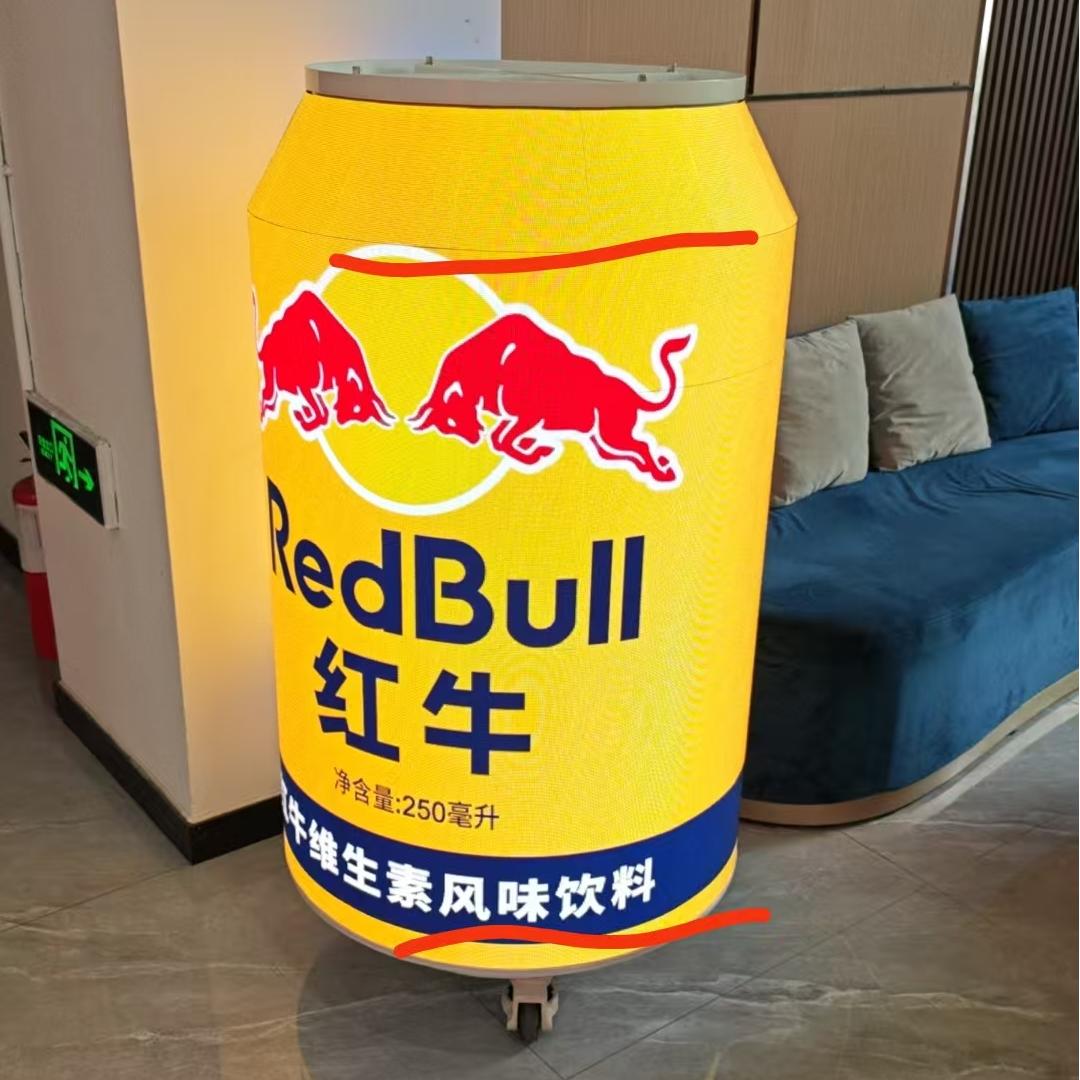

Cola Can Shape for Drink Advertising;
360° Full-range display;
With Wheels to be movable for Events;

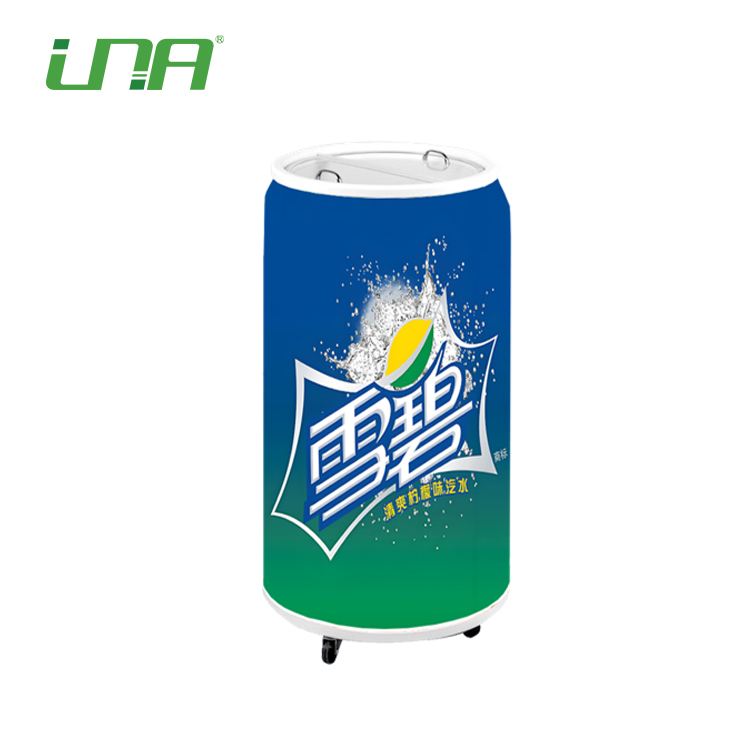

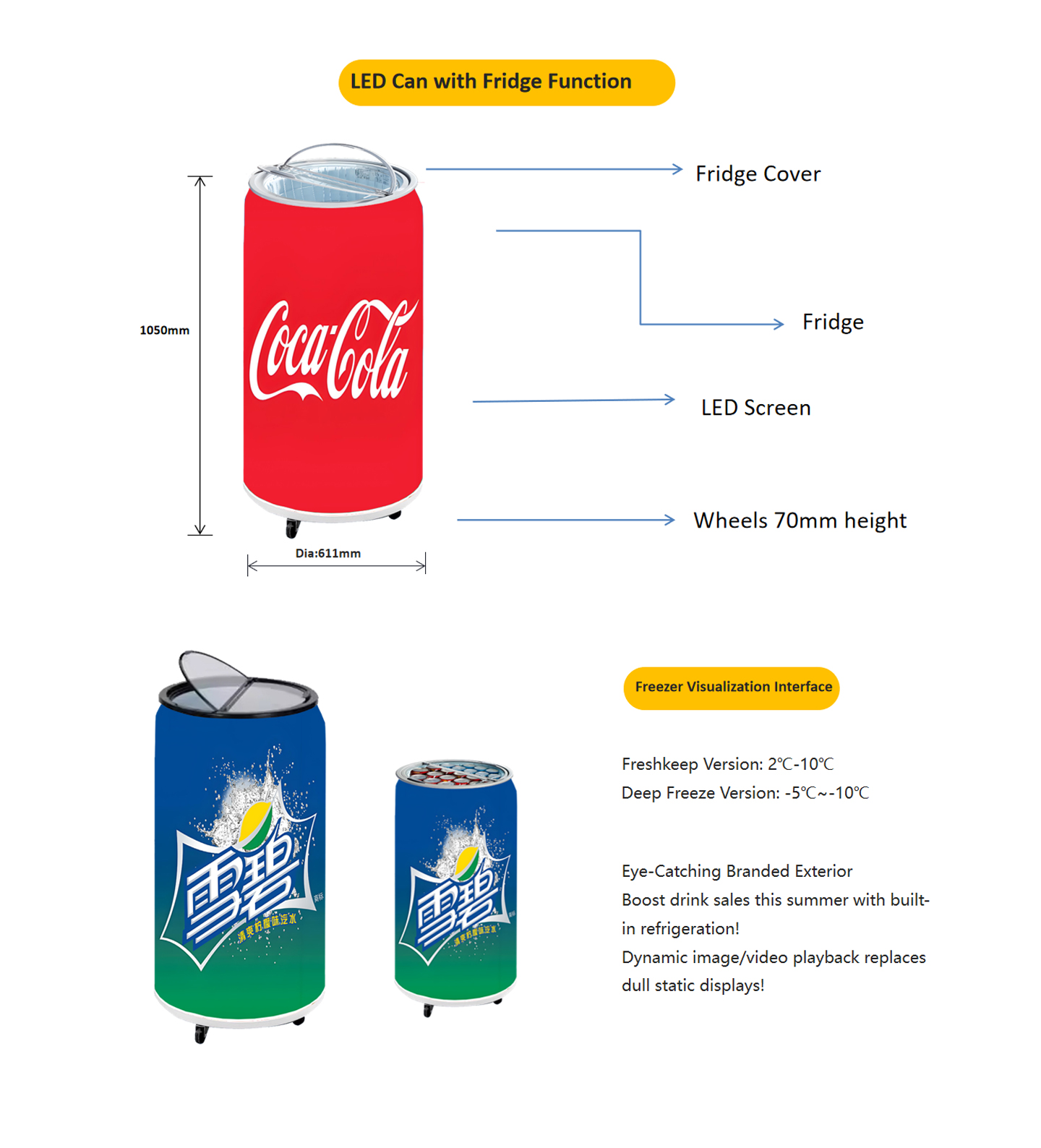

With Refriderator inside for selling beverage
Specifications:

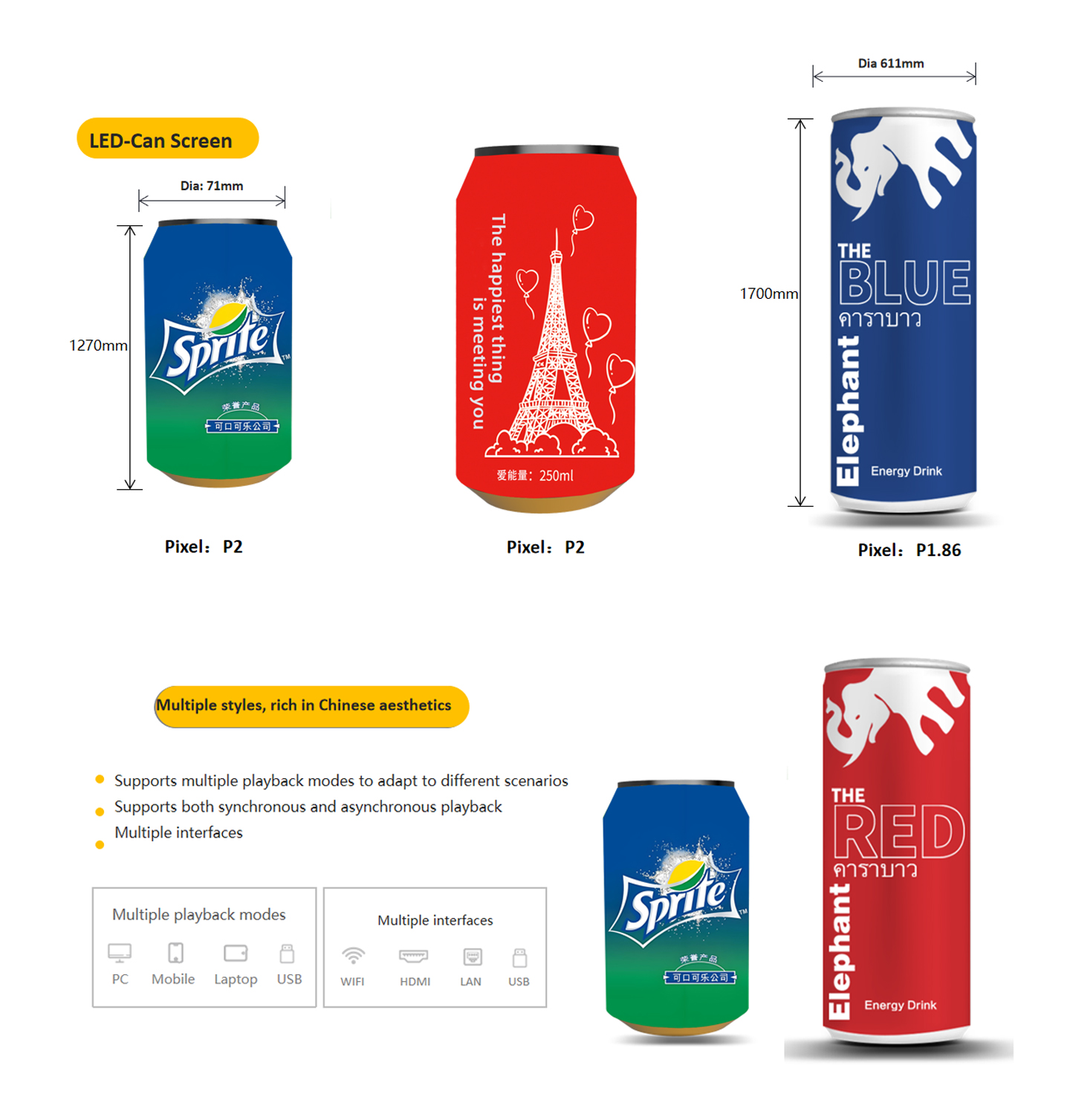

| Item | UNA-C7012 | UNA-C7017 | UNA-C6017 | UNA-C6010F |
| Pixel pitch(mm) | P2 | P2 | P1.86 | P1.86 with Refrigerator |
| LED type | SMD1515 | SMD1515 | SMD1212 | SMD1212 |
| Cabinet size(H*Dia) mm | 1270x713 | 1750x713 | 1700x611 | 1050x611 |
| Cabinet Resolution(dot) | 1120x560 | 1120x800 | 1030x817 | 1032x473 |
| New Weight (kg/pcs) | 65 | 173 | 130 | 98 |
| Diving Mode | 1/40 scan | 1/40 scan | 1/43 scan | 1/43 scan |
| Module Size(mm) | 320x160 | 320x160 | 320x160 | 320x160 |
| Module Resolution(dot) | 160x80 | 160x80 | 172x86 | 172x86 |
| Pixel Density(dots/sqm) | 250000 | 250000 | 288906 | 288906 |
| Min. View Distance | >2m | >2m | >1.9m | >1.9m |
| Cabinet Material | Sheet Metal Structure | |||
| Brightnees(nits) | >600 | |||
| View angle | H: 170° / V: 170° | |||
| Gray scale | 16 bit | |||
| Refresh Rate | >3840Hz | |||
| Lifespan(H) | >100 000 | |||
| Power Comsumption(max.) | 800 | 800 | 600 | 800 |
| Power Comsumption(ave.) | 200 | 200 | 180 | 200 |
| Module Voltage | DC4.2V-5V | |||
| Input Voltage | 100-240Vac ; 50/60Hz | |||
| Working Temperature | –20℃～+60℃ | |||
| Working Humidity | 10% ～85% | |||

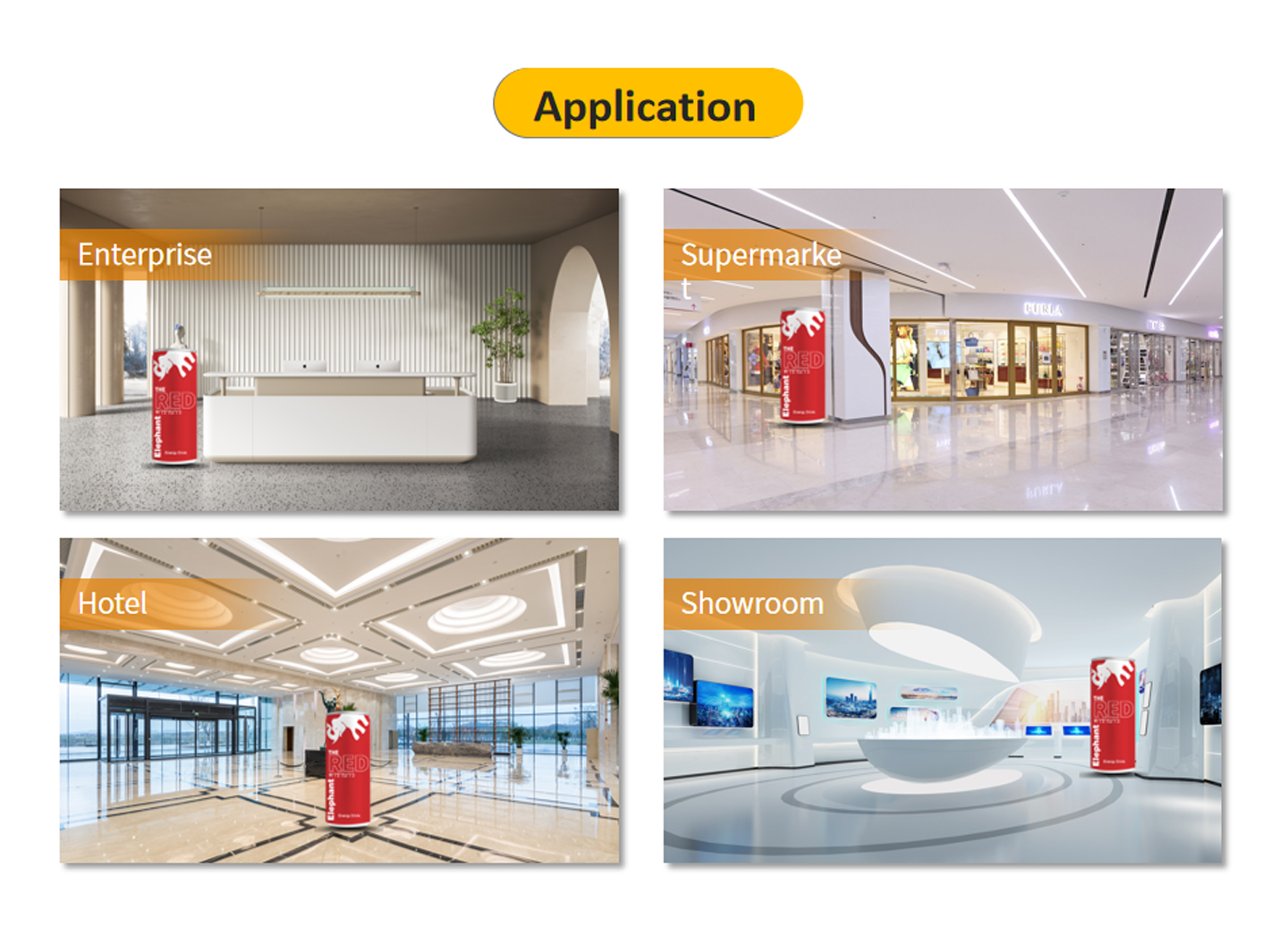

| Installation | Indoor / Free Standing | |||
| Water proof IP rate | IP31 | |||
| Maintenance | Front-side access | |||
| LED Control System | Mooncell | |||
Environment
| Working Temperature | –20℃ ～ + 60℃ | ||||||||||
| Working Humidity | 10% ～90% | ||||||||||
| Storage Temperature | –35℃ ～ + 85℃ | ||||||||||
| Storage Humidity | 10% ～90% | ||||||||||
Material
| Cabinet | Die-cast aluminium | Metal Iron / Die-cast aluminium | |||||||||
| Maintenance | Front-side / Rear-side access | ||||||||||
| LED chip | Nationstar / King light | ||||||||||
| Power supply | Meanwell / G-energy | ||||||||||
| Controlling system | Novastar / Linsn / Colorlight | ||||||||||
| Installation | Indoor / Fixed installation / Wall mount / Hanging / Free standing | ||||||||||
Service:
Customers' designs are welcome, can provide samples for testing and approval.
Can speed up production to meet customers' market demand.
Installation instructions, customized design or colors are available.
Could print customers' LOGO on the frame with digital file from clients.
Assist customers to purchase with any other concerning products.
Can send parts for replacement if quality defective belong to ours.
Why choose us?
The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.
A professional sales team to guarantee samples quality, mass-production shipments and after-sales service.
Advanced production equipments.
Production capacity is the guarantee.
2 Year Products quality guaranteed with extra spare parts,online support, On-Site assistant support if needed.
We can tailor each indoor LED digital signage base on your installation site needs.
Shipping and payment:
Trade Terms: EXW,FOB, CFR or CIF
Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.
Lead-time: Around 7days depend on order quantity.
MOQ: Sample order is accepted.
Package: Bubble bag + Foam angle bead + PlyWooden box
Shipping: by international express as UPS, TNT, DHL, FEDEX, or by Sea.
