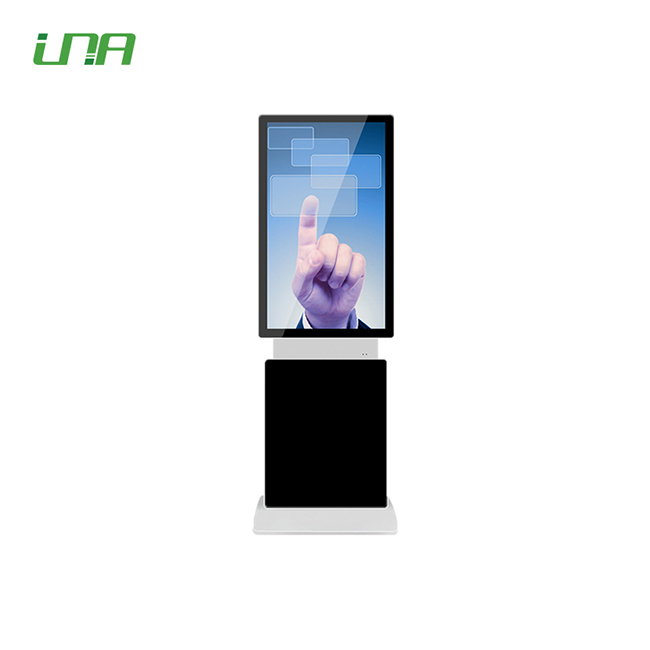

43'' Indoor Rotating Dual Screen LCD Video Display
Home » Products » LCD Digital Signage » Indoor LCD Digital Display » Rotating LCD Display » 43'' Indoor Rotating Dual Screen LCD Video Display

loading

Share to:

43'' Indoor Rotating Dual Screen LCD Video Display

43'' Indoor Rotating Dual Screen LCD Video Display, opening media new industry:
1. With more eye catching when it displays advertising images or videos in the meantime it is rotating
2. With Commercial Management Software to realize those following functions:
In one platform, transform your promotion advertising contents by remote control system, showing real-time information on screens,control all LCD displays from different locations. You could quick play it by USB or SD card.
3.The principle for 10 point Capacitive or Infrared Interactive Touch is to locate the current generated by the contact between the object and the LCD display screen, so you can operate it by your finger but nonliving body like nail or pen can not operate. Moreover theoretically the precision of PCAP/IR touch screen can reach several pixels, surface smooth can make it full LCD displays.
  • UNA-R43A
  • UNA
  • 8528591090
Availability:

Product Description

LCD Digial Screen Display

43'' Indoor Rotating Dual Screen LCD Video Display

PRODUCT FEATURES:

1. Floor standing, customized LOGO on the frame is available

2. Standard size: 32'',43'',49'',55''

3. Aluminium frame: built for retail and high traffic environments, Not plastic housing as TV screen

4. Tempered glass Panel: High quality and clear image be to seen

5. Advanced Cooling system: Avoid the LCD digital signage from overheating

6. LED lighting: brighter, clearer and sharper image

7. Long lifespan: 50,000Hours, it could be used for 11 years if at 12 hours a day, 7 days a week; while home TV average lifetime is only 15,000hours.Save money on having to replace a standard TV

8. With round angle design in order to aviod any human-hurting in public place with is more humanized and more friendly.

9.Installation: Indoor, Floor standing, free standing


Specifications

Screen size 32'' 43'' 49'' 55''
Display area(mm) 689x383 941x529 1074x605 1210x680
Max. power(W) 48 60 90 100
Resuoltion 1920x1080 /2K
Display color 16.7 Mil
Brightness(nits) 500
Contrast ration 1400 : 1
Display scale 16 : 9
Visual angle 178°(H)/178°(V)
Response time 5 ms
Lifespan(H) <50 000


Input and output

RJ45 port *1pcs
USB port *4pcs
HDMI port *1pcs
SD port *1pcs (For standalone type)
USB port *1pcs (For standalone type)
L/R audio input 1(RCA*2)
L/R audio output 1(RCA*2)
Speaker 2*5W
Power supply AC100-240V ; 50-60Hz


Environment

Working Temperature –20℃ ~ + 40℃
Working Humidity 10% ~90%
Storage Temperature –20℃ ~ + 60℃
Storage Humidity 10% ~90%


Hardware

Operation system Android 5.1/7.1/11 PC/Windows Sandalone type
CPU RK3128 / 3288 / 3399 Intel 3 / 5 / 7 / 9
RAM 1GB / 2GB 8GB / 16GB 8GB / 16GB
Memory 8GB / 16GB 256GB / 512GB / 1TB By USB/SD card only
WIFI Yes Yes
Bluetooth Available Available


Touch Panel (Interactive touch function optional)

Type 10 point PCAP touch / 10 point IR Interactive touch
Touch Resolution 32767x32767
Positioning accuracy ±2mms
Tansmittance ≥92%
Hardness 7H
Response time ≤4ms


Appearance

Surface color Black / Silver / Gold / Red (Optional)
Housing Aluminium Alloy + Iron
Front panel Tempered glass
Screen BOE / LG / SAMSUMG
Installation Floor standing


Media play

Video format MPEG1 / MPEG2 / MPEG4 / DivX / ASP / WMV / AVI
Audio format WMV, AVI, FLV, RMVB, MPEG, TS, MP4
Image format BMP, JPEG, PNG, GIF, TIFF
Image resolution 480P / 720P / 1080P
Language Chinese / English(For platform software) / Multi OSD language


Accessories

Manual * 1pcs
Remote controller * 1pcs
Keys * 2pcs
Power Cable * 1pcs


Applications:

           Business Organizations Supermarkets,Shopping malls, Shopping centers, Commercial centers, Chain shops, Chain stores,Hotels, INNs, Restaurants,Travel bureau, Pharmacy, Conference rooms, Meeting rooms, Baber shops, Gallery, Noshery, Enterprise,Toggery, Couture, Drugstore,Dental clinic, Chemist's shop, Luxury store, Cosmetic store, Electronic market
Financial Organizations Banks, negotiable securities, insurance companies, pawnshops;Non-profit Organizations,Telecommunications, Post offices, Hospital, Schools, University, Window display
Public Places Subway, Airports, Stations, Gas stations, Toll stations, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Convention centers, Ticket agencies, HR market, Lottery centers; Real Estate Property, Apartments, Villas, Offices, Commercial buildings, Model rooms, Property brokers, Church, Dining-hall, Lobby, Restroom, Washroom, Lift, Elevator, Bus
Entertainment Places Movie theaters, Fitness halls, Country clubs, Clubs, Massage rooms, Night bars, Cafes, Internet bars, Beauty shops, Golf course, Cinema, Ballroom, Moive theater

5x5拼图

Service:

Customers' designs are welcomed, can provide samples for testing and approval.

Can speed up production to meet customers' market demand.

Installation instructions, customized design or colors are available.

Could print customers' LOGO on the frame with digital file from clients.

Assist customers to purchase with any other concerning products.

Can send parts for replacement if quality defective belong to ours.


Why choose us?

The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.

Advanced production equipments.

1 Year Products quality guaranteed, online support.

A professional sales team to guarantee samples quality, mass-production shipments and After-sales service.

Production capacity is the guarantee.


Shipping and payment:

Trade Terms: EXW,FOB, CFR or CIF

Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.

Lead-time: Around 7days depend on order quantity.

MOQ: Sample order is accepted.

Package: Bubble bag + carton for container shipment, plus plywooden box for LCL/CFS shipment

Shipping: by international express as UPS, TNT, DHL, FEDEX, or by Sea.


Application


Workshop


Exhibition


Certificate
