Product Description

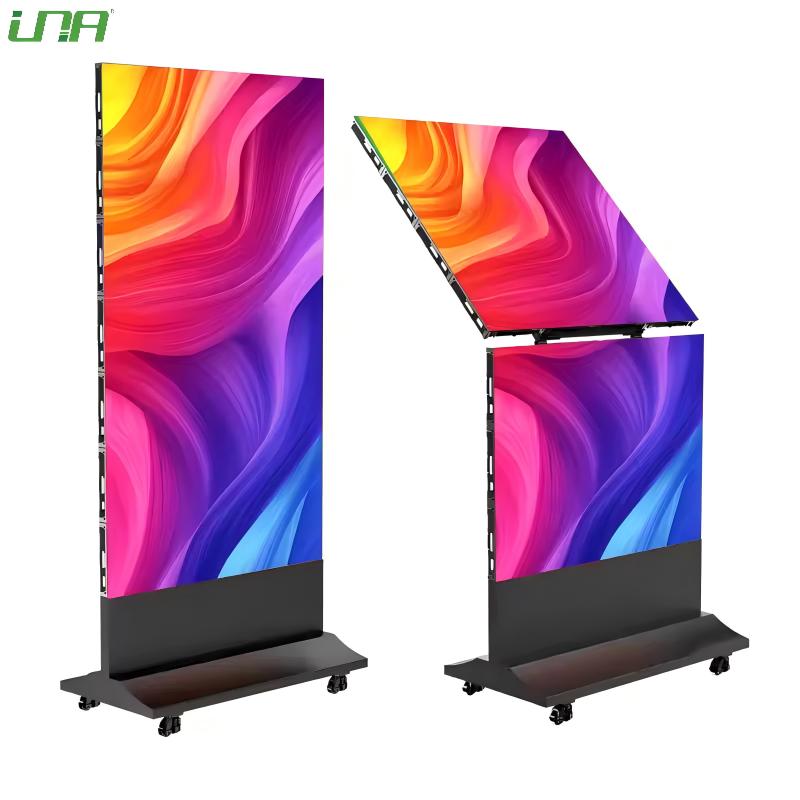

Indoor Top-to-Bottom Foldable Video Display Gob LED Poster Screen

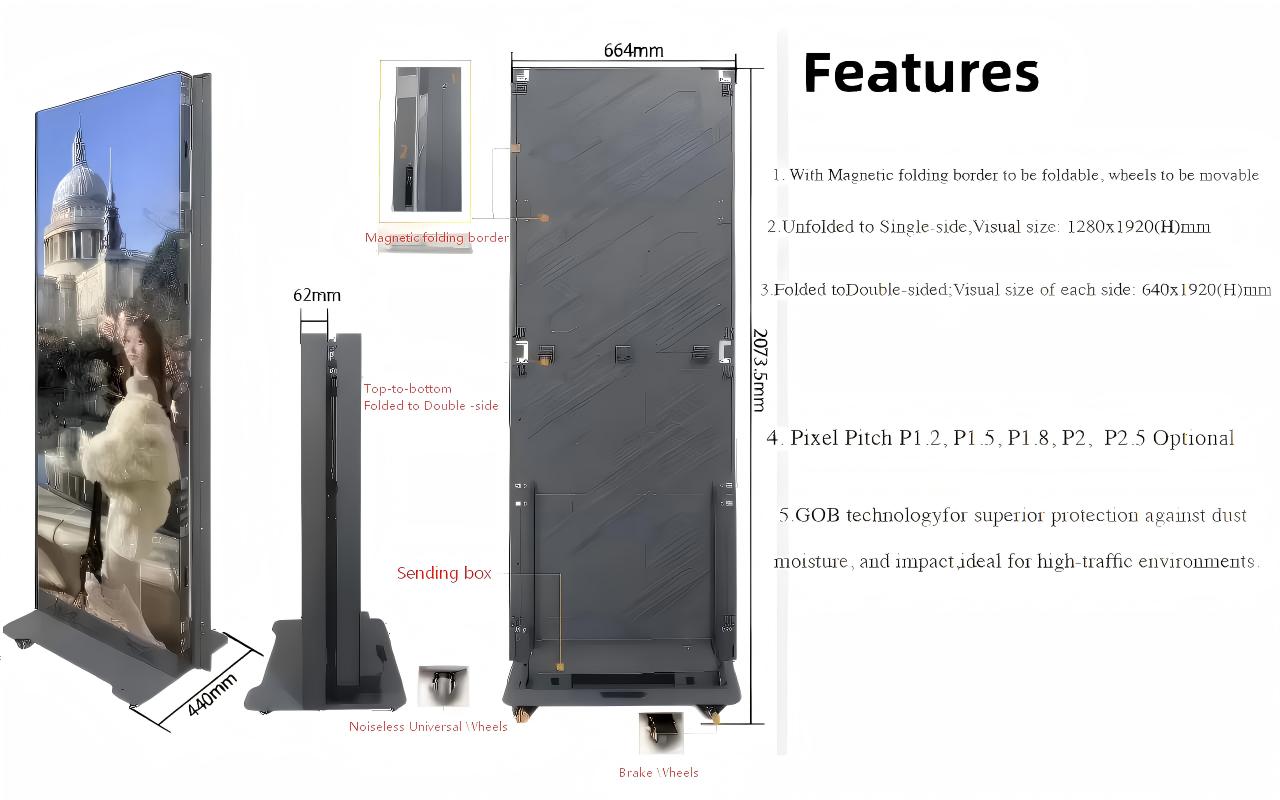

PRODUCT FEATURES:

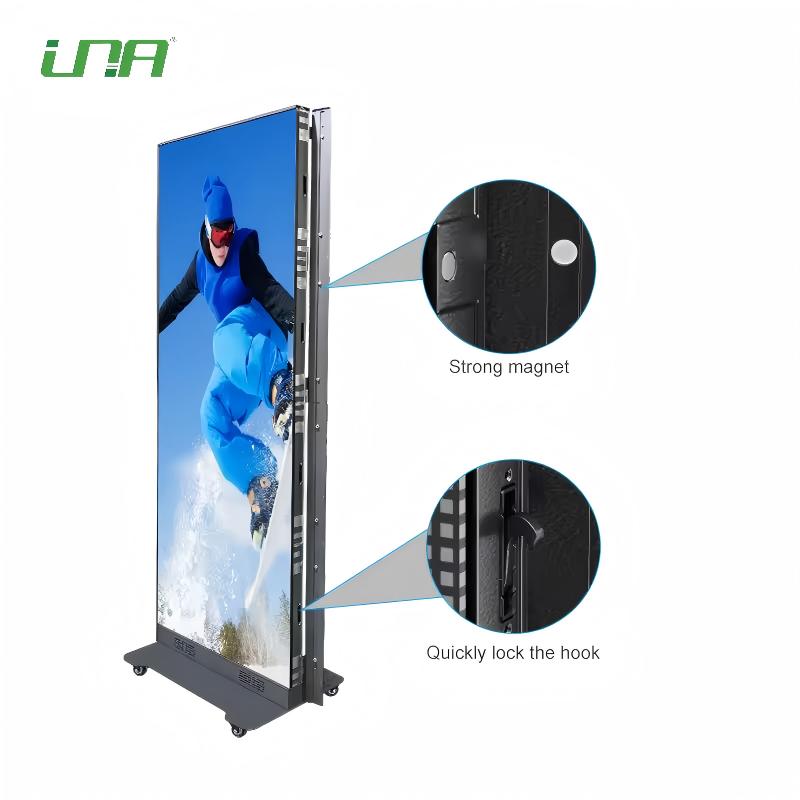

1. With Magnetic folding border to be foldable, and wheels to be movable
2. Unfolded to Single-side, Visual size: 640x1920(H)mm

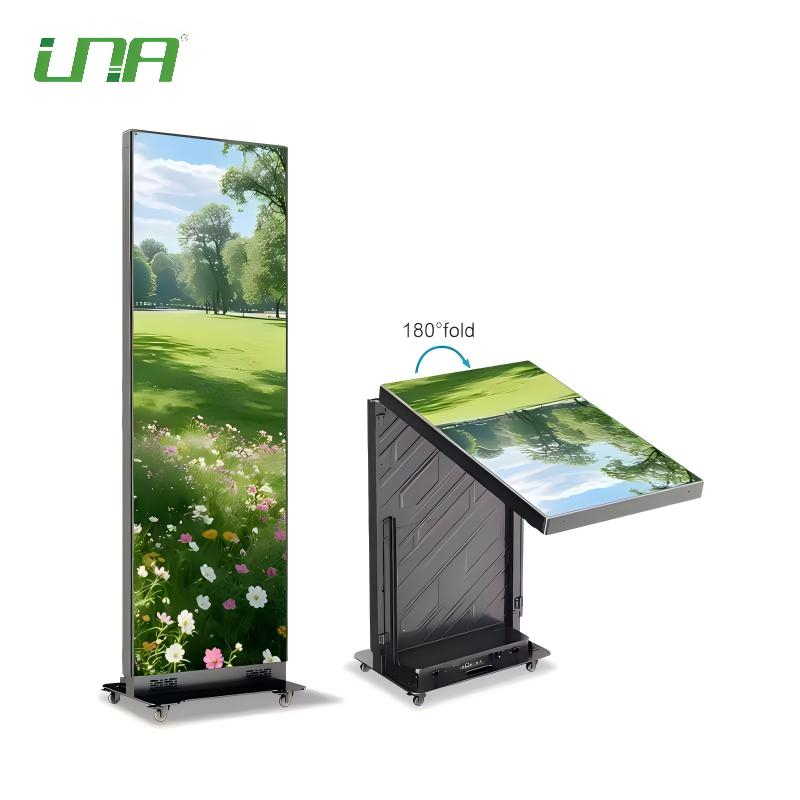

3. Folded to Double-sided; Visual size of each side: 640x960(H)mm
4. GOB technology for superior protection against dust, moisture,
and impact-ideal for high-traffic environments.
Specifications
| Model (GOB Tech) | P1.25 | P1.538 | P1.86 | P2 | P2.5 |
| Pixel pitch(mm) | 1.25 | 1.538 | 1.86 | 2 | 2.5 |
| LED type(SMD) | SMD1010 | SMD1515 | |||
| Diving Mode | 1/64 scan | 1/52 scan | 1/43 scan | 1/40 scan | 1/32 scan |
| Module Size(mm) | 320x160 | ||||
| Module Resolution(dot) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 |
| Module Weight (g/pcs) | 380 | 375 | 365 | ||
| Module Current(A) | 4A | ||||
| Cabinet size(W*H*D) mm | 640x1920x60 | ||||
| Cabinet Material | Aluminium | ||||
| Cabinet Weight (kg/pcs) | 45 | ||||
| Pixel Density(dots/sqm) | 640,000 | 422,754 | 288,906 | 250,000 | 160,000 |
| Min. View Distance | >1.2m | >1.5m | >1.9m | >2m | >2.5m |
| White Balance Brightnees(nits) | >600 | >650 | |||
| View angle | H: 140° / V: 140° | ||||
| Gray scale | 13 - 16 bit | ||||
| Refresh Rate | 3840Hz | ||||
| Lifespan(H) | >100 000 | ||||
| Power Comsumption(max.) | 400W/sqm | ||||
| Power Comsumption(ave.) | 150W/sqm | ||||
| Maintenance | Front-side access | ||||
| Installation | Indoor Floor Standing | ||||
| Usage | Indoor | ||||
| Water proof IP rate | IP43 | ||||
Environment
| Working Temperature | –20℃ ～ + 60℃ | |||||||||||
| Working Humidity | 10% ～90% | |||||||||||
| Storage Temperature | –35℃ ～ + 85℃ | |||||||||||
| Storage Humidity | 10% ～90% | |||||||||||
Service:
Can provide samples for testing and approval.
Short lead time
Warranty is 2 years, with extra spare parts for maintenance.
Remote calibration and installation assistant
On-Site installation assistant: Engineer Available in case that flight and accomodation is ready,
plus labor cost
Assist customers to purchase with any other concerning products.
Why choose us?
The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.
A professional sales team to guarantee samples quality, mass-production shipments and after-sales service.
Advanced production equipments.
Production capacity is the guarantee.
2 Year Products quality guaranteed, online support, On-Site assistant support if needed.
Shipping and payment:
Trade Terms: EXW,FOB,or CIF
Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.
Lead-time: Around 7days depend on order quantity.
MOQ: Sample order is accepted.
Package: Bubble bag + Foam angle bead + Wooden box
Shipping: by international express as UPS, TNT, DHL, FEDEX, or by Sea.
