G4-120H
UNA
8528591090
Product Description

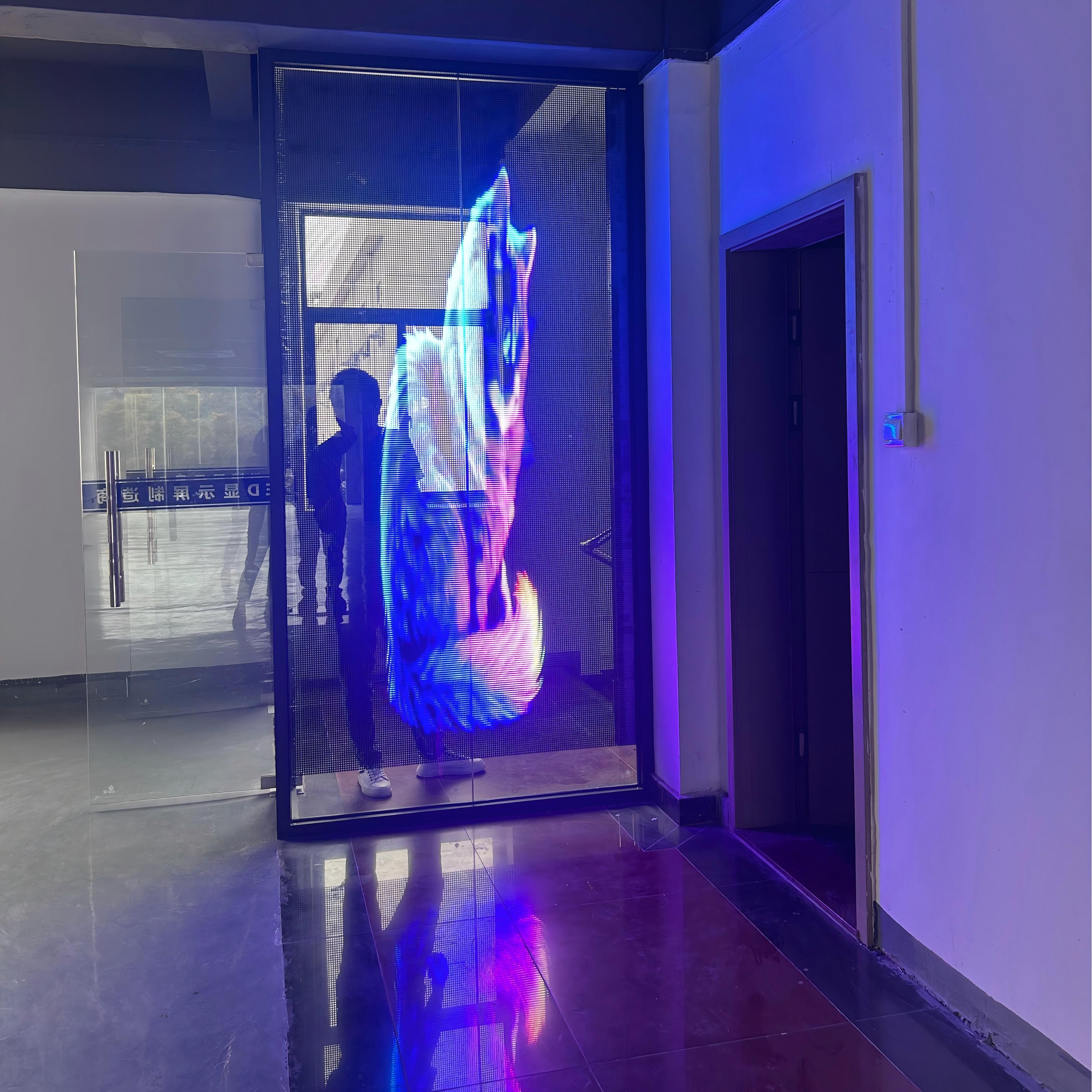

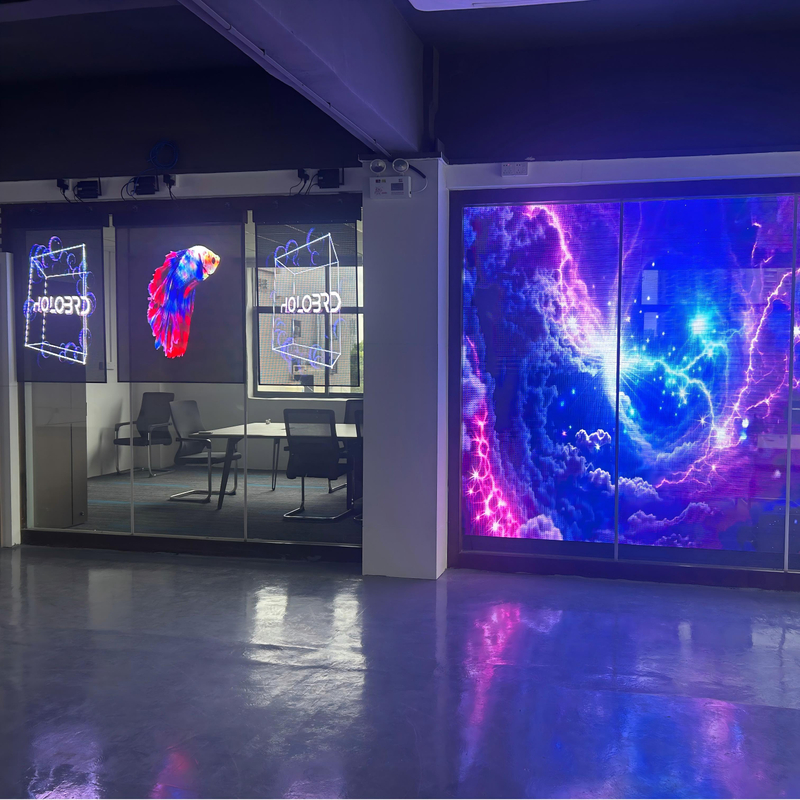

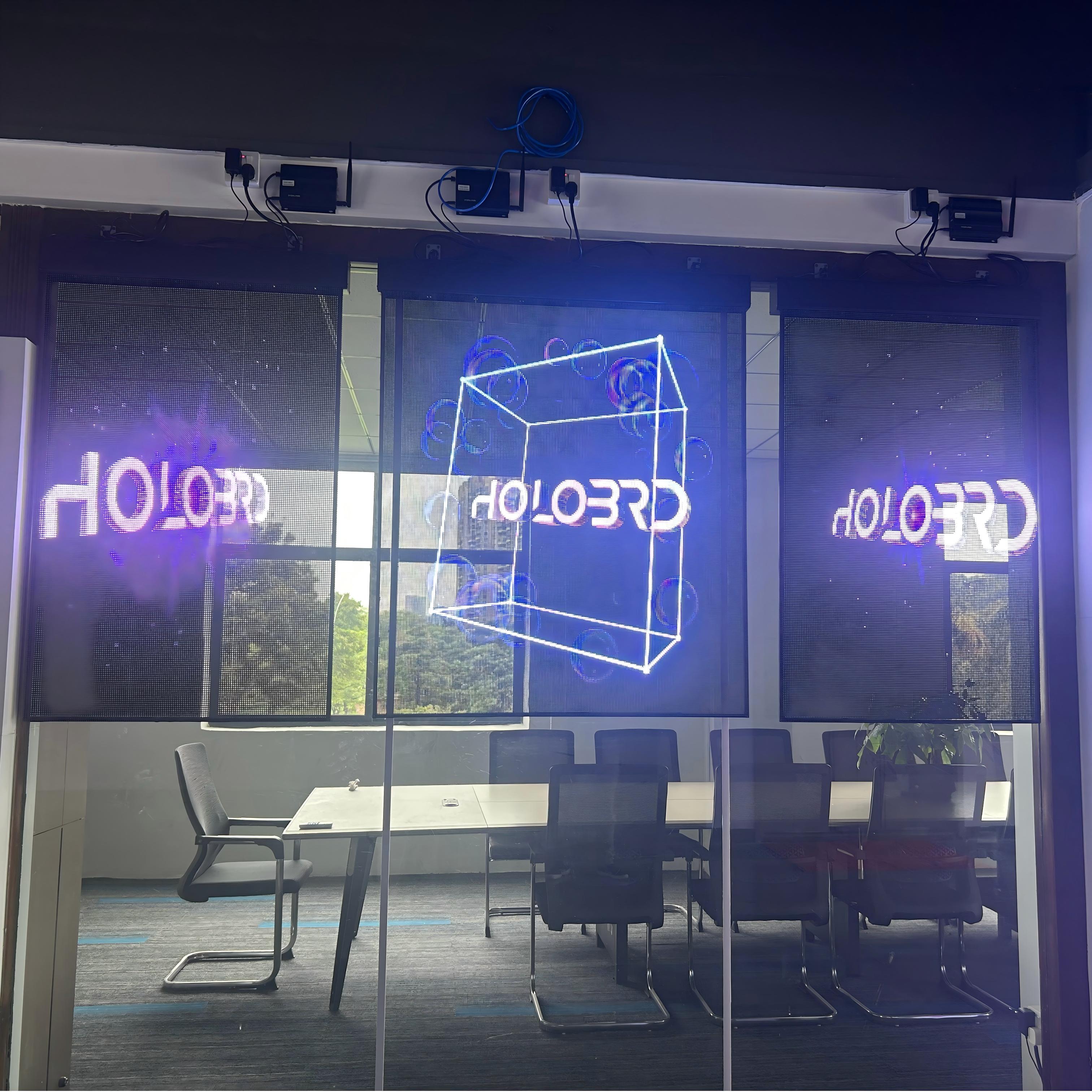

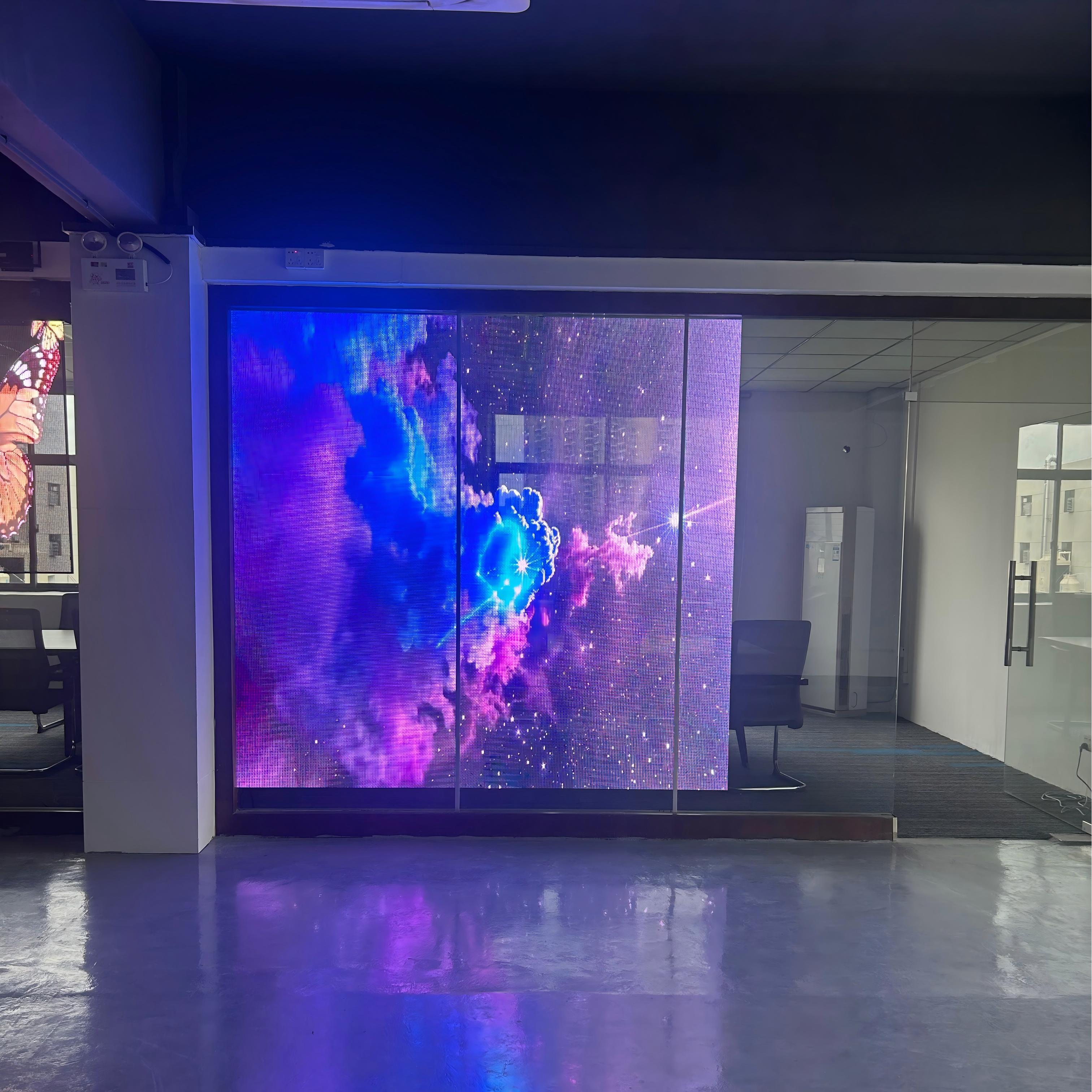

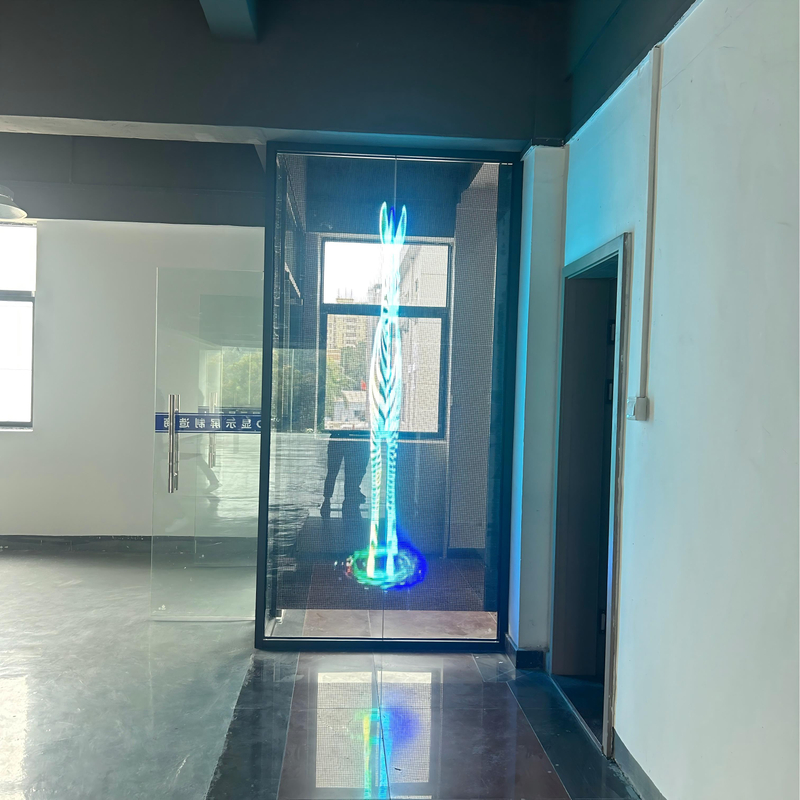

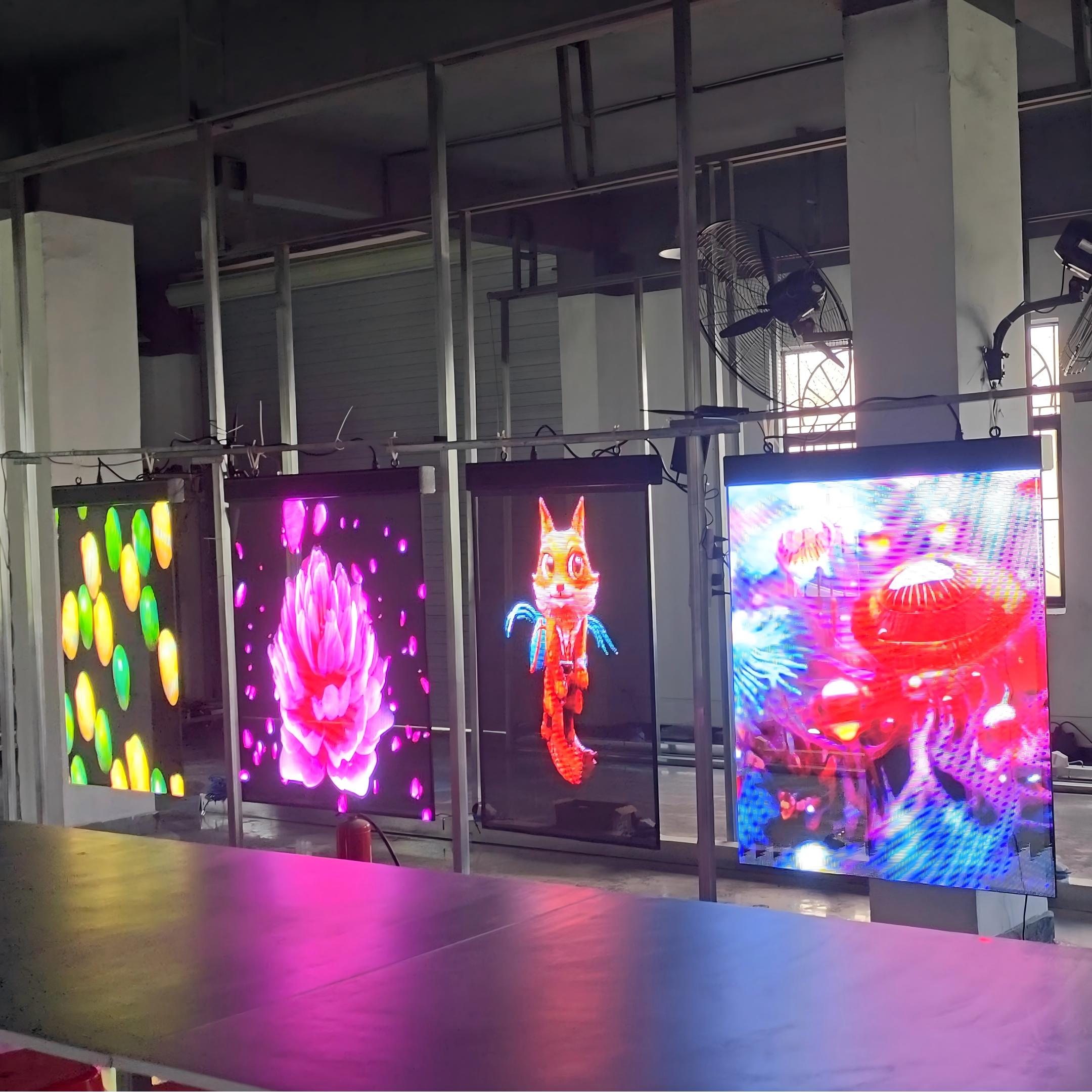

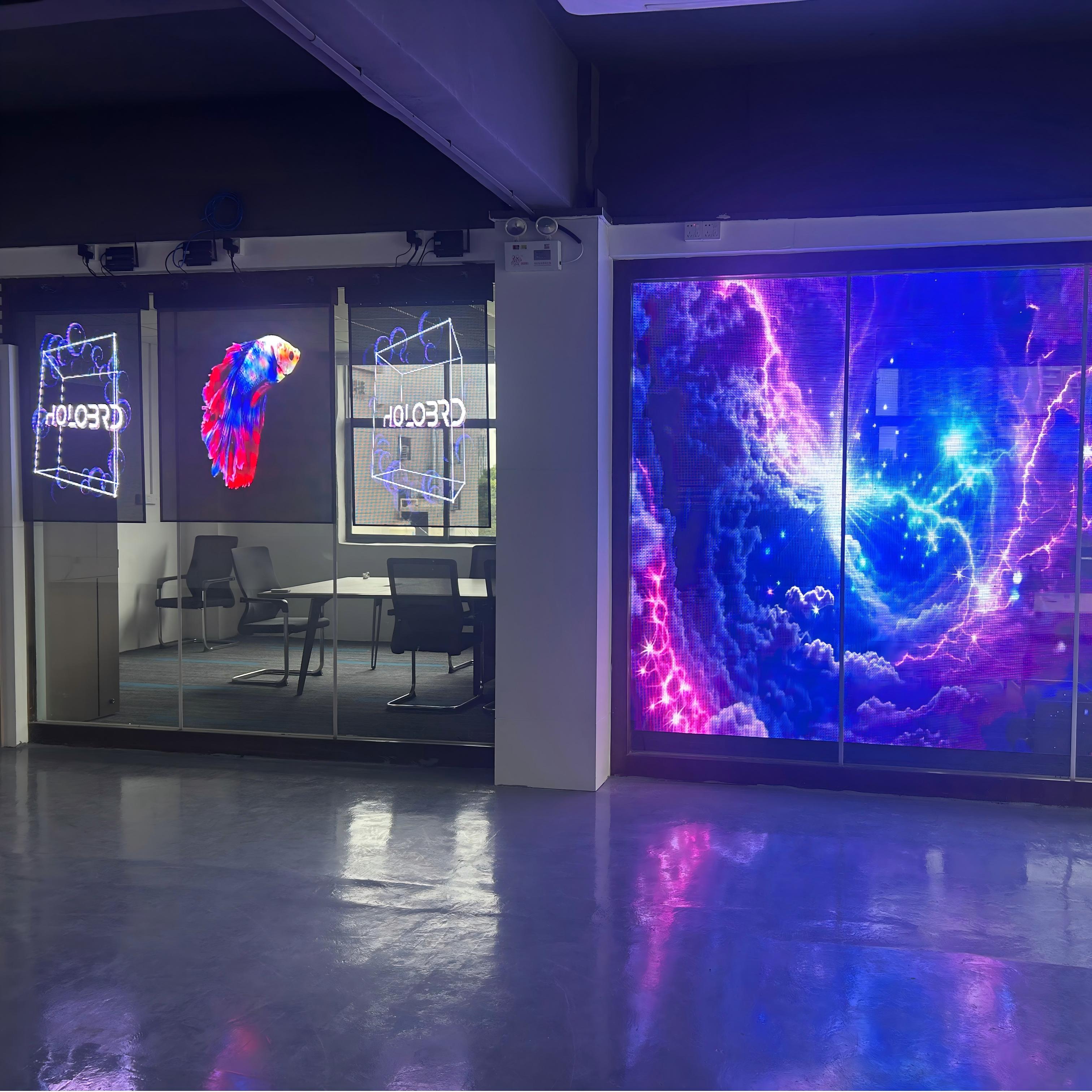

Low Energy Holographic Transparent Indoor 3D LED Display Screen
Specifications
| Item | G3-120H | G3-120M | G4-120H | G3-150H | G3-150M | G3-200H | G3-200M | |||
| Pixel pitch(mm) | P3.91 | P4.81 | P3.91 | |||||||
| LED type | MIP1210 | MLS1516 | SMD1515 | MIP1210 | MIP1210 | MLS1516 | SMD1515 | MIP1210 | MLS1516 | SMD1515 |
| Module Size(mm) | 250x1179.6 | 250x1195.5 | 250x1192 | 250x1500 | 250x1492 | 250x1062 | 250x1055 | |||
| Screen size(W*H) mm | 750x1221 | 750x1233 | 1000x1542 | 1000x1545 | 1000x2208 | 1000x2216 | ||||
| Screen Resolution(dot) | 192*285 | 192*292 | 192*292 | 156*234 | 256*367 | 256*370 | 256*370 | 256*510 | 256*512 | 256*512 |
| Pixel Density(dot/sqm) | 65536 | 43264 | 65536 | |||||||
| Net Weight (kg/sqm) | 3 | |||||||||
| Min. View Distance | >4m | >5m | >4m | |||||||
| Brightnees(nits) | 5000 | 1600 | 2000 | 4000 | 5000 | 1600 | 2000 | 5000 | 1600 | 1600 |
| View angle | H: 140°/ V: 140° | |||||||||
| Contrast Ratio | 4000 : 1 | |||||||||
| Refresh Rate | 3840Hz | |||||||||
| Visual Transparency | 90% | |||||||||
| Flatness | ≥98% | |||||||||
| Diving Mode | 1/16Scan | 1/32Scan | 1/32Scan | 1/13Scan | 1/16Scan | 1/32Scan | 1/32Scan | 1/16Scan | 1/32Scan | 1/32Scan |
| Lifespan(H) | >100 000 | |||||||||
| Power Comsumption(max.) | 800W | 400W | 600W | 800W | 400W | 800W | 400W | |||
| Power Comsumption(ave.) | 240W | 120W | 180W | 240W | 120W | 240W | 120W | |||
| Temperature Rise(During Operation) | ≤3° | |||||||||
| Maintenance | Front-side access | |||||||||
| Material | Fiberglass | |||||||||
| Water proof IP rate | IP43 | |||||||||
| Application | Glass Direct Mounting/Clampable in Tempered Glass/Back Frame Installation/Ceiling Mount/Inner Arc Installation/Supports Bending | |||||||||

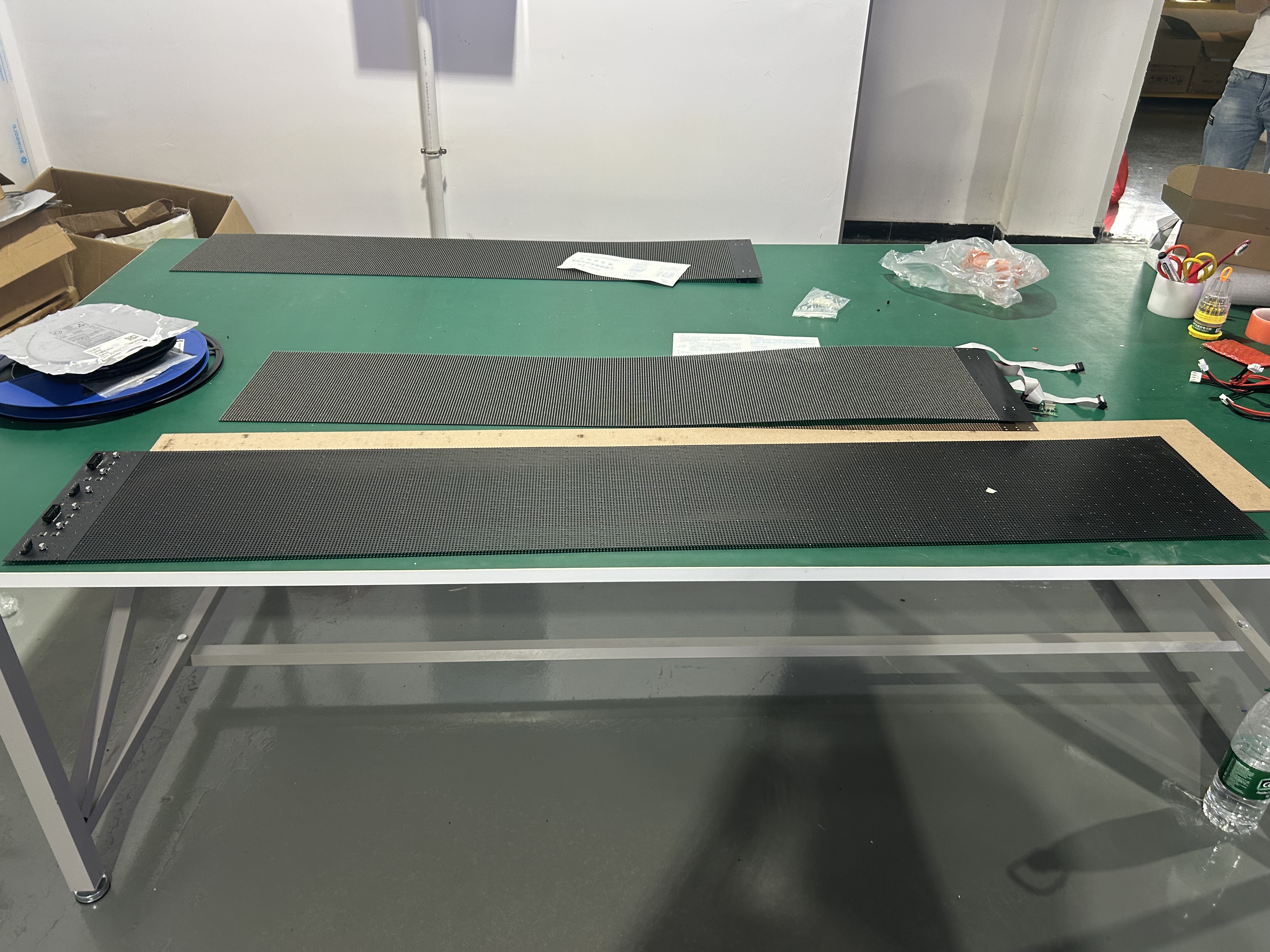

Module Photo:
Environment
| Working Temperature | –20℃ ～ + 60℃ | |||||||||||
| Working Humidity | 10% ～90% | |||||||||||
| Storage Temperature | –35℃ ～ + 85℃ | |||||||||||
| Storage Humidity | 10% ～90% | |||||||||||
Material
| Cabinet | Fiber Glass | |||||||||||
| Maintenance | Front-side access | |||||||||||
| Controlling system | Novastar / Linsn / Colorlight | |||||||||||
| Installation | Indoor / Floor standing/Hanging | |||||||||||
Service:
Can provide samples for testing and approval.
Short lead time
Warranty is 2 years, with extra spare parts for maintenance.
Remote calibration and installation assistant
On-Site installation assistant: Engineer Available in case that flight and accomodation is ready,
plus labor cost
Assist customers to purchase with any other concerning products.
Why choose us?
The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.
A professional sales team to guarantee samples quality, mass-production shipments and after-sales service.
Advanced production equipments.
Production capacity is the guarantee.
2 Year Products quality guaranteed, online support, On-Site assistant support if needed.
Shipping and payment:
Trade Terms: EXW,FOB,or CIF
Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.
Lead-time: Around 7days depend on order quantity.
MOQ: Sample order is accepted.
Package: Bubble bag + Foam angle bead + Wooden box
Shipping: by international express as UPS, TNT, DHL, FEDEX, or by Sea.
