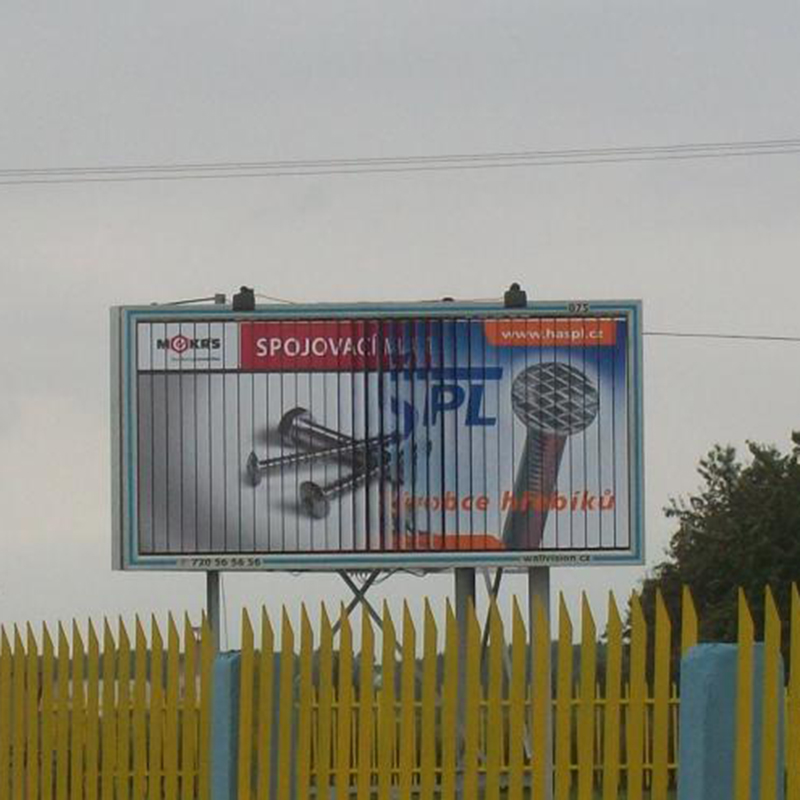

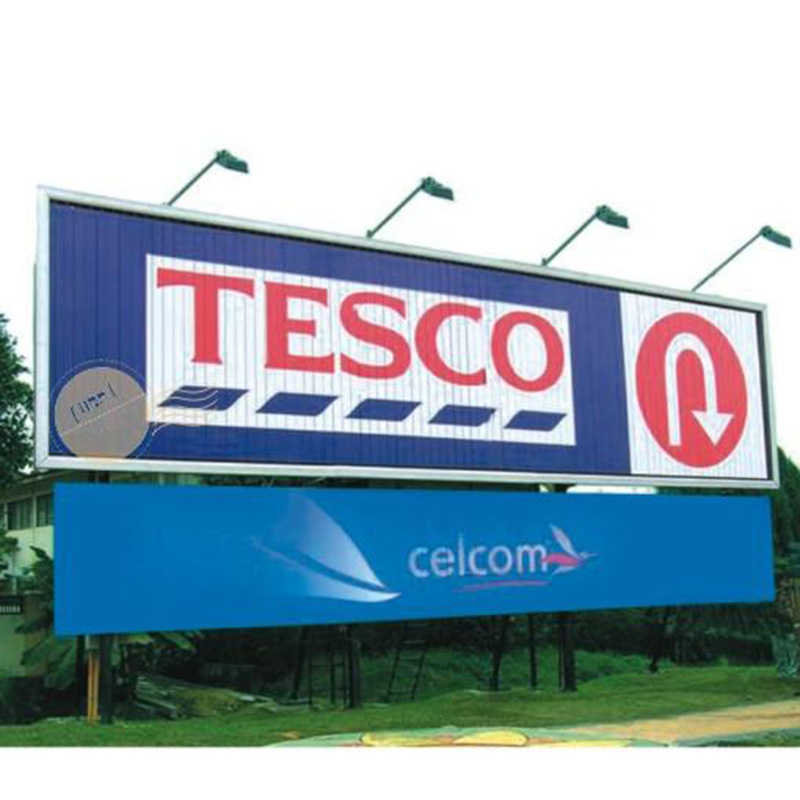

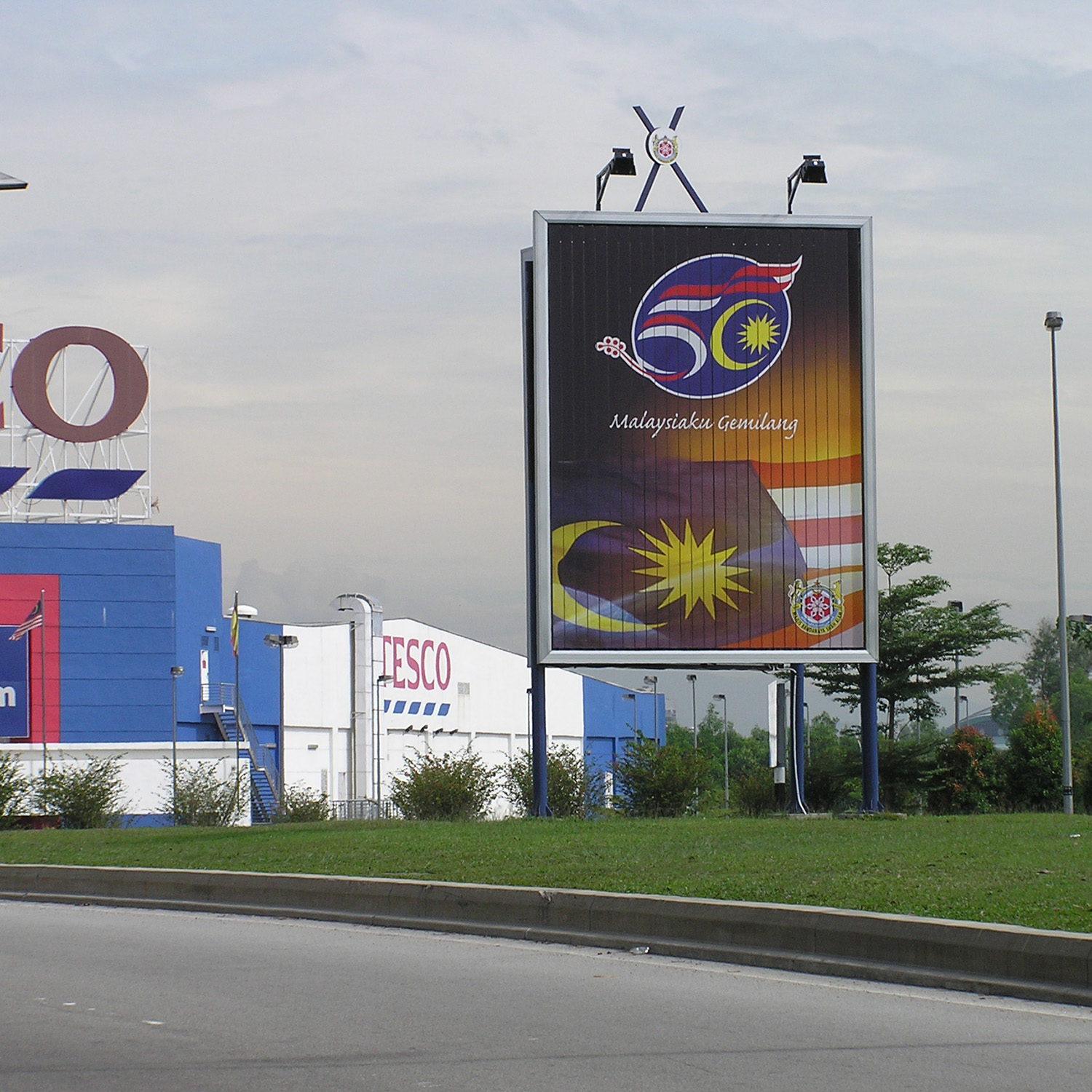

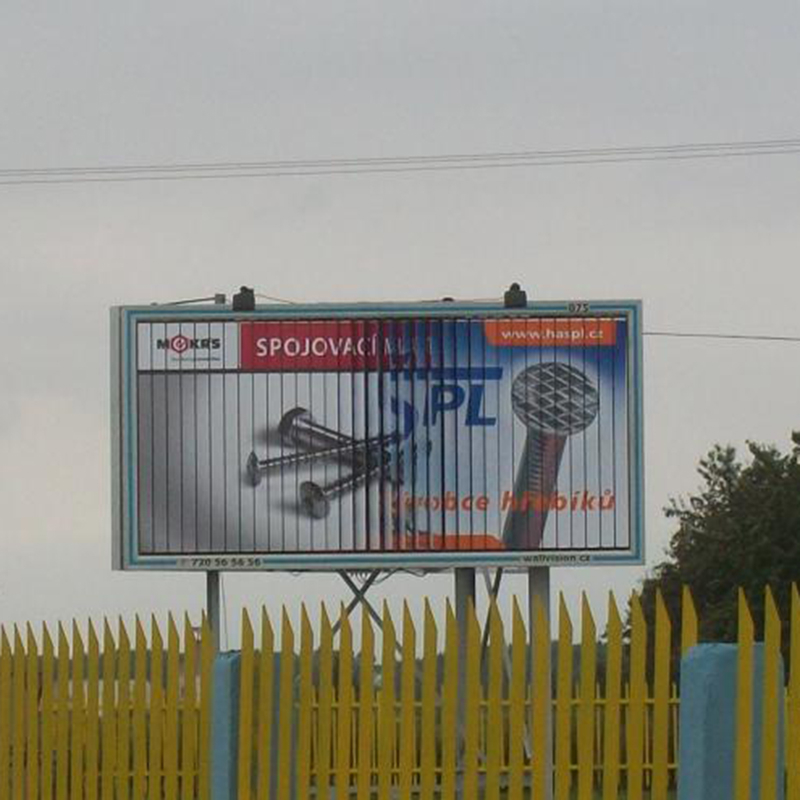

Outdoor media 2-poles PVC Triple Sign with LED Spotlight

Outdoor media 2-poles PVC Triple Sign with LED Spotlight showing 3 advertising images, vertical or horizontal type.
Wall-mounted or pole support; size can be customized, standard size normally is 4x3m, 6x3m,12x3m or 18x6m, etc.
The main material is Aluminum alloy frame and tri-angle prisms, Panasonic motor and Crouzet controller,Dupont engineering plastic parts,etc.

Model:
UNA-131
Brand:
UNA
Code:
8310000000

Availability:

Product Description

PRODUCT SPECIFICATION:

Standard Size: 4x3m, 6x3m, 12x3m, 18x6m, Customized sizes are welcome
Prism size: Width:131mm, Thickness: 1.35mm,1.5mm,1.6mm
Frame size: Width:145 x Thickness:160mm
Frame color: Silver, Black, White or customized
Main material: Aluminum alloy
Motor: Original Panasonic motor, 90W/pcs
Controller: Crouzet Brand of Siemens
Poster material:Adhesive vinyl sticker
Power supply: AC220v, Current:0.54A, frequency:50HZ, Power:90W
Gross Weight: 18kg per sqm
Usage: Outdoor, IP55 water-proof and weather-proof
Extra function: With matching LED spot light; Solar system(include solar panel and battery, optional)
Application: Airport,bus-stop,station,chain store,shopping mall,lift,street,T pattern pole,building,supermarket, hotel, restaurant,bank,exhibition hall,highway, etc.

PRODUCT FEATURES:

Anti-rust, Anti-corrosion, Shock resistance, heat radiation
Water-proof & dust-proof, weather-proof, wind resistance of 10 class/level
Easy pictures changing, can display three pictures on each tri-vision billboard
One-year guarantee, arrange on-site installation guide engineer according to customers needs
Image combination: triangular prism 8m without joint for height, and no length limit
Image flipping time: each face 6-12 seconds (preset )
Image stop time: freely set from 1-900 seconds
Qualified installation will ensure normal service life up to 10 years based on 16h/day
