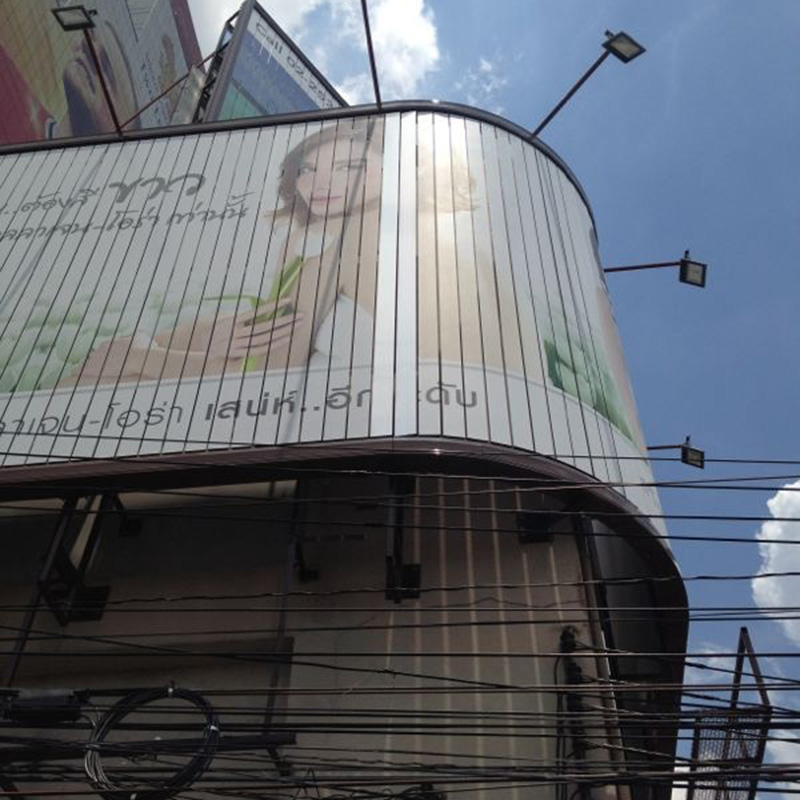

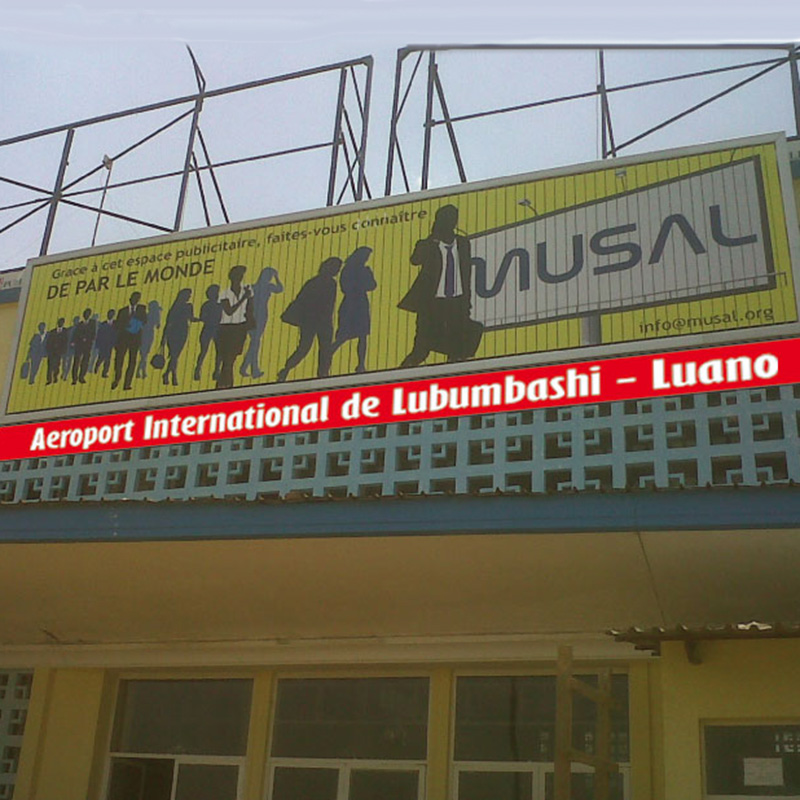

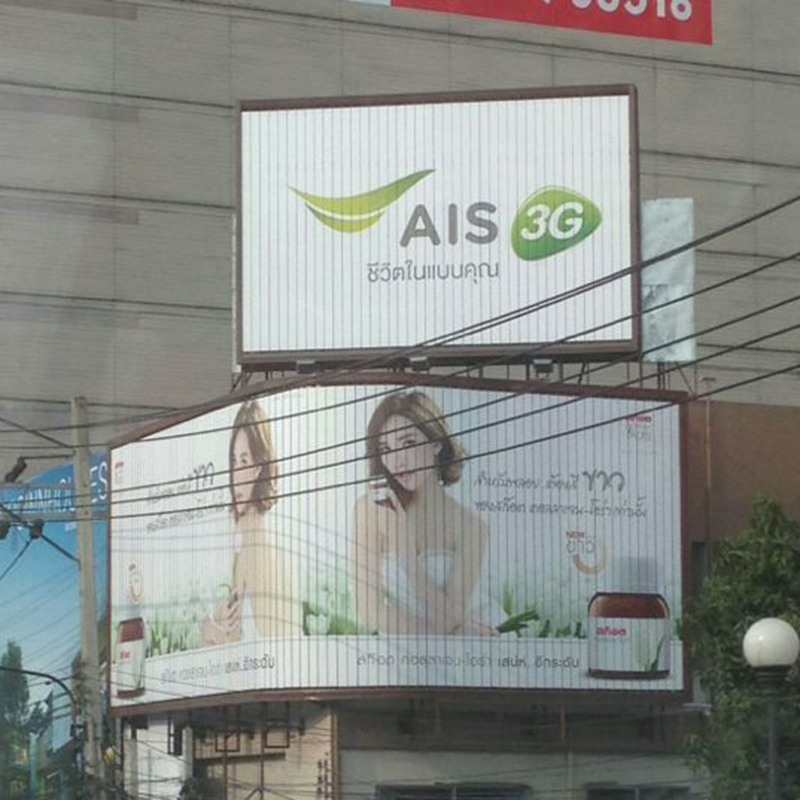

Outdoor Wall Mount Aluminium Tri-moving Prisms Billboard

Outdoor Wall Mount Aluminium Tri-moving Prisms Billboard

PRODUCT SPECIFICATION:

• Standard Size: 4x3m, 6x3m, 12x3m, 18x6m, Customized sizes are welcome

• Prism size: Width:131mm, Thickness: 1.35mm,1.5mm,1.6mm

• Frame size: Width:145 x Thickness:160mm

• Frame color: Silver, Black, White or customized

• Main material: Aluminum alloy

• Motor: Original Panasonic motor, 90W/pcs

• Controller: Crouzet Brand of Siemens

• Poster material:Adhesive vinyl sticker

• Power supply: AC220v, Current:0.54A, frequency:50HZ, Power:90W

• Gross Weight: 18kg per sqm

• Usage: Outdoor, IP55 water-proof and weather-proof

• Extra function: With matching LED spot light; Solar system(include solar panel and battery, optional)

• Application: Airport,bus-stop,station,chain store,shopping mall,lift,street,T pattern pole,building,supermarket, hotel, restaurant,bank,exhibition hall,highway, etc.

PRODUCT FEATURES:

• Anti-rust, Anti-corrosion, Shock resistance, heat radiation

• Water-proof & dust-proof, weather-proof, wind resistance of 10 class/level

• Easy pictures changing, can display three pictures on each tri-vision billboard

• One-year guarantee, arrange on-site installation guide engineer according to customers needs

• Image combination: triangular prism 8m without joint for height, and no length limit

• Image flipping time: each face 6-12 seconds (preset )

• Image stop time: freely set from 1-900 seconds

• Qualified installation will ensure normal service life up to 10 years based on 16h/day
