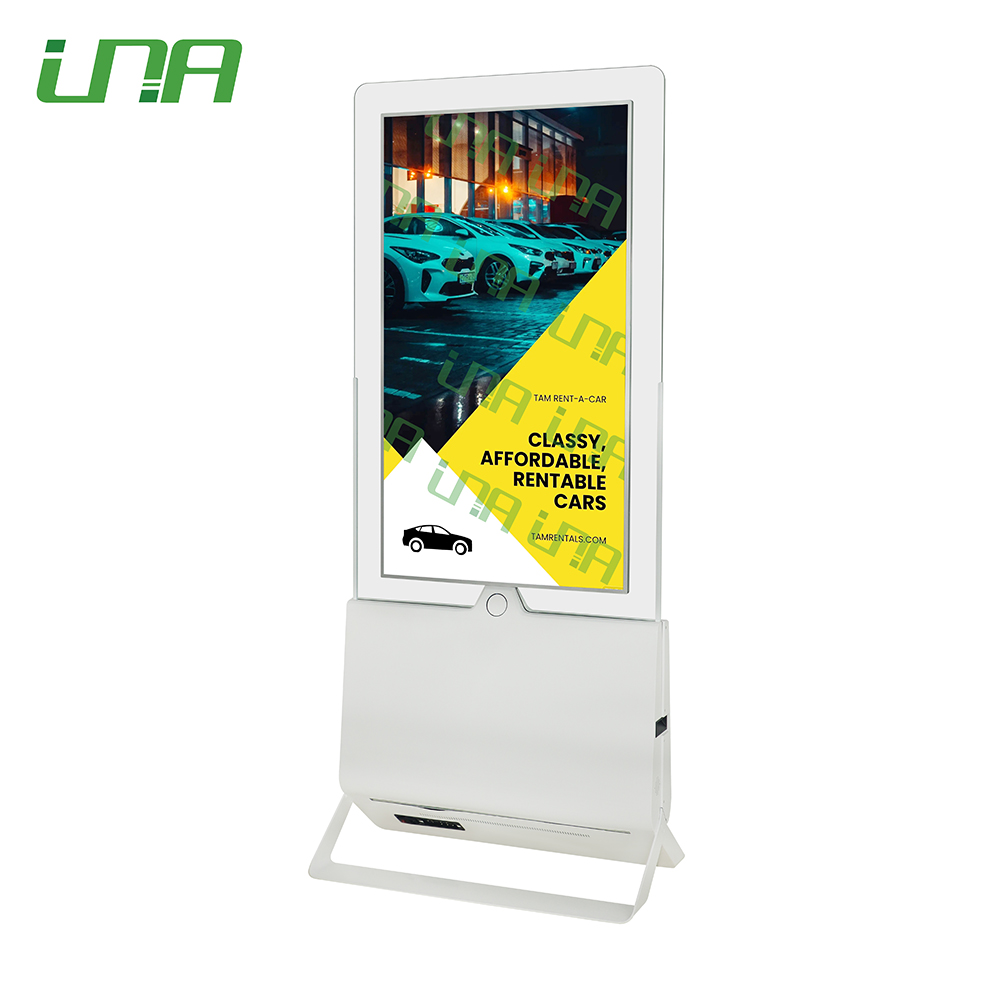

Indoor Free standing Glass double sided LCD digital display

Indoor Free standing Glass double sided LCD digital display is an innoivative way to display any advertising content at any venue.
It mostly used for double sided, 2pcs of original LG screen panels fixed on two sided of the tempered glass.
Double side with 21mm thickness,which is slimest double sided LCD display on the market today.
That LCD digital screen are embedded into a clear glass panel to give the impression that the screens float in the air and the advertising image or video comes from the galss surface directly.
With a beautiful appearance,just like a work of art.
It also could be capacitive touch as option.
  • UNA-EG8

  • UNA

  • 8528591090


Product Description

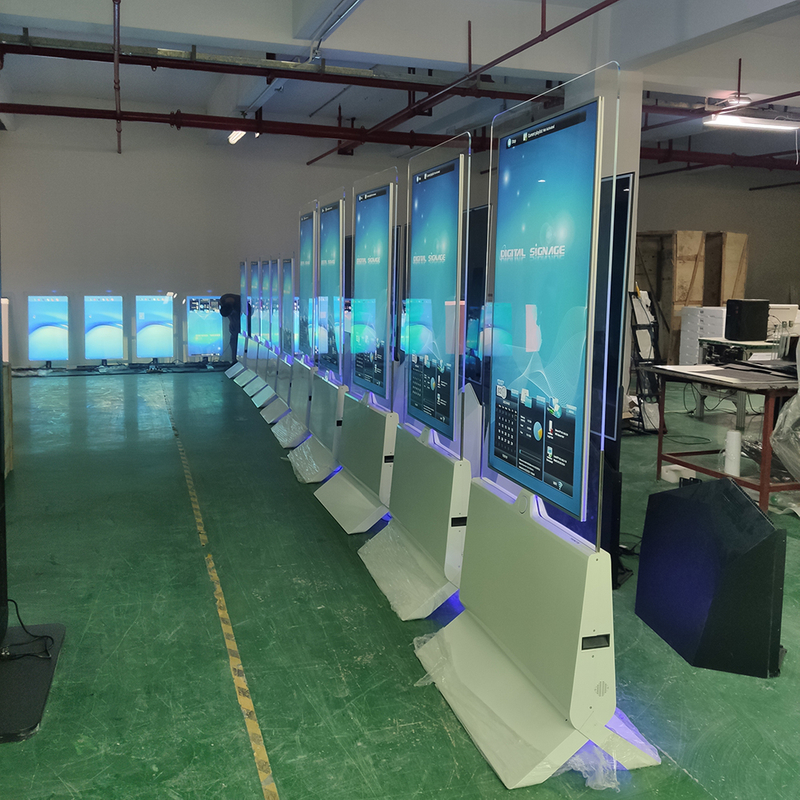

1.Production scenario

2.Production scenario

Indoor Free standing Glass double sided LCD digital display


1. Portrait, Free standing, can print customized LOGO on the metal stand.

2. Standard size: 43'', 55''

3. Tempered galss housing: looks very elegant and as a luxury product for advertising display

4. Tempered glass Panel: Long lasting and extremely durable

5. LED backlight: brighter, clearer and sharper image

6. Long lifespan: 50 000Hours,it could be used for 11 years if at 12 hours a day, 7 days a week; while home TV average lifetime is only 15,000hours.Save money on having to replace a standard TV

7. With round angle design in order to aviod any human-hurting in public place,which is more humanized and more friendly.

8.Installation: Indoor,  Floor-standing


Screen size 43'' 55''
Display area(mm) 941x529 1210x680
Max. power(W) 60 100
Type Double Side
Max. resuoltion 1920x1080 /2K
Display color 16.7 Mil
Brightness(nits) 350
Contrast ration 1400 : 1
Display scale 16 : 9
Visual angle 178°(H)/178°(V)
Response time 5 ms
Lifespan(H) <50 000

Input and output

RJ45 port *1pcs
USB port *4pcs
HDMI port *1pcs
SD port *1pcs (For standalone type)
USB port *1pcs (For standalone type)
L/R audio input 1(RCA*2)
L/R audio output 1(RCA*2)
Speaker 2*5W
Power supply AC100-240V ; 50-60Hz


Working Temperature –20℃ ~ + 40℃
Working Humidity 10% ~90%
Storage Temperature –20℃ ~ + 60℃
Storage Humidity 10% ~90%


Operation system Android system
CPU RK3128 / 3288 / 3399
Memory 8GB / 16GB
Bluetooth Optional

Touch Panel (Interactive touch function optional)

Type 10 point Capacitive touch
Touch Resolution 32767x32767
Positioning accuracy ±2mms
Tansmittance ≥92%
Hardness 7H
Response time ≤4ms


Surface color Transparent
Housing Tempered Glass
Front panel Tempered Glass
Screen LG
Installation Hanging

Media play

Video format MPEG1 / MPEG2 / MPEG4 / DivX / ASP / WMV / AVI
Audio format WMV, AVI, FLV, RMVB, MPEG, TS, MP4
Image format BMP, JPEG, PNG, GIF, TIFF
Image resolution 480P / 720P / 1080P
Language Chinese / English(For platform software) / Multi OSD language


Manual * 1pcs
Remote controller * 1pcs
Wire rope * 2pcs
Power Cable * 1pcs


Business Organizations Supermarkets,Shopping malls, Shopping centers, Commercial centers, Chain shops, Chain stores,Hotels, INNs, Restaurants,Travel bureau, Pharmacy, Conference rooms, Meeting rooms, Baber shops, Gallery, Noshery, Enterprise,Toggery, Couture, Drugstore,Dental clinic, Chemist's shop, Luxury store, Cosmetic store, Electronic market
Financial Organizations Banks, negotiable securities, insurance companies, pawnshops;Non-profit Organizations,Telecommunications, Post offices, Hospital, Schools, University, Window display
Public Places Subway, Airports, Stations, Gas stations, Toll stations, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Convention centers, Ticket agencies, HR market, Lottery centers; Real Estate Property, Apartments, Villas, Offices, Commercial buildings, Model rooms, Property brokers, Church, Dining-hall, Lobby, Restroom, Washroom, Lift, Elevator, Bus
Entertainment Places Movie theaters, Fitness halls, Country clubs, Clubs, Massage rooms, Night bars, Cafes, Internet bars, Beauty shops, Golf course, Cinema, Ballroom, Moive theater



1.Customers' designs are welcomed, can provide samples for testing and approval.

2.Can speed up production to meet customers' market demand.

3.Installation instructions, customized design or colors are available.

4.Could print customers' LOGO on the frame with digital file from clients.

5.Assist customers to purchase with any other concerning products.

6.Can send parts for replacement if quality defective belong to ours.

Why choose us?

The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.

Advanced production equipments.

1 Year Products quality guaranteed, online support.

A professional sales team to guarantee samples quality, mass-production shipments and After-sales service.

Production capacity is the guarantee.

Shipping and payment:

Trade Terms: EXW,FOB,CFR or CIF, DDU, etc

Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.

Lead-time: Around 7days depend on order quantity.

MOQ: Sample order is accepted.

Package: Bubble bag + carton for container shipment, plus plywooden box for LCL/CFS shipment

Shipping: by international express as UPS, TNT, DHL, FEDEX, by air or by Sea.










What is the working principle of indoor LED digital display?
What is the working principle of indoor LED digital display?indoor LED digital display is made of LED lamp beads, current and voltage are very low, and the human body is not damaged by radiation. What is the working principle of indoor LED digital display?
