UNA-IP25
UNA
8528591090
Product Description

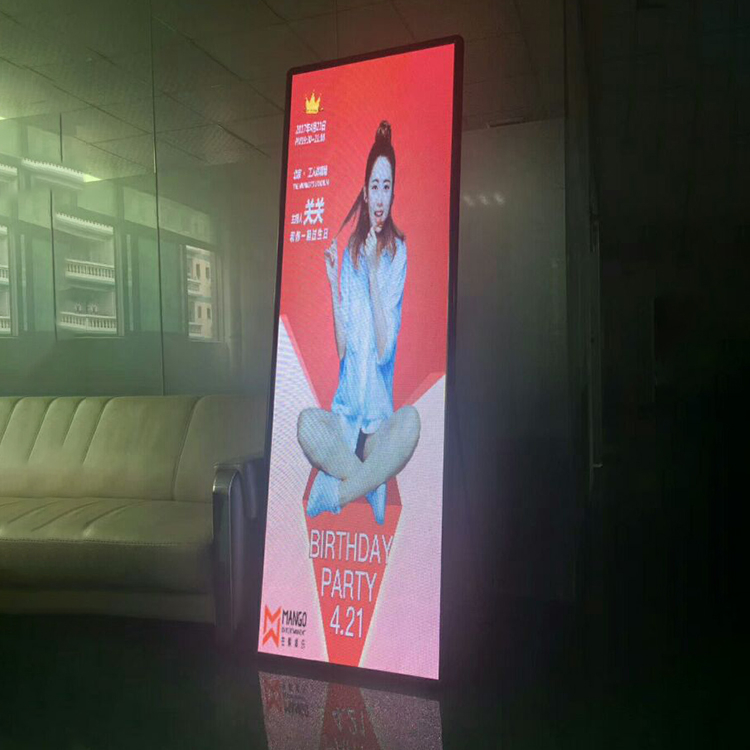

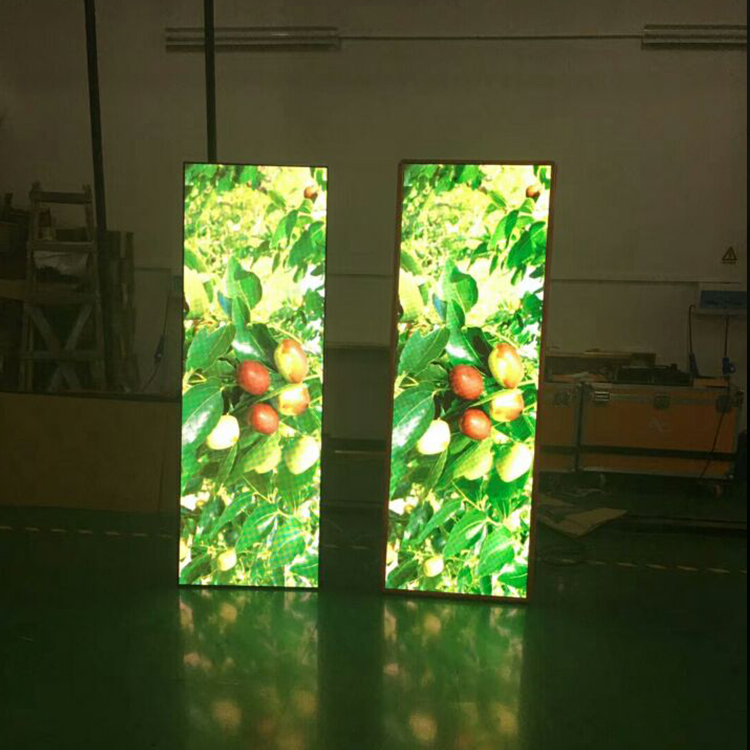

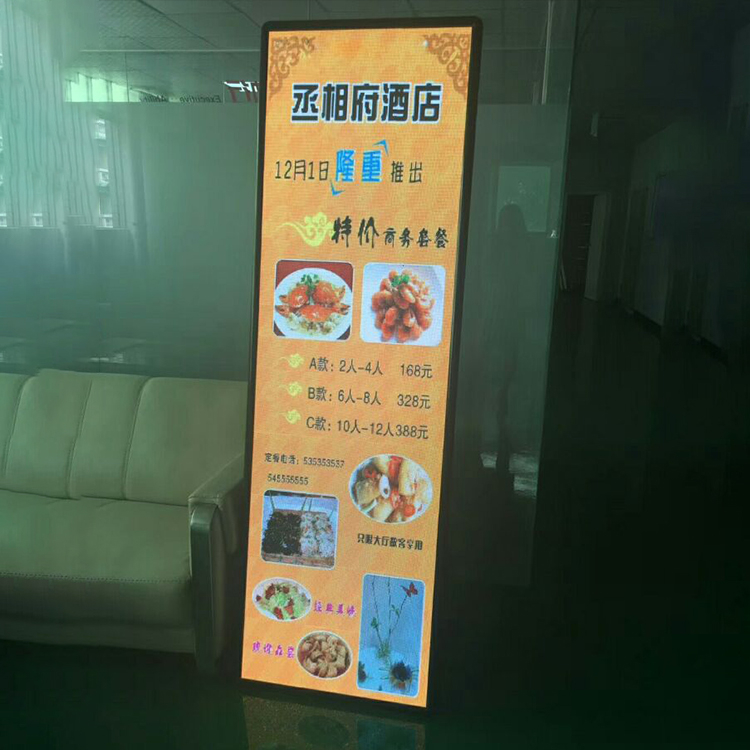

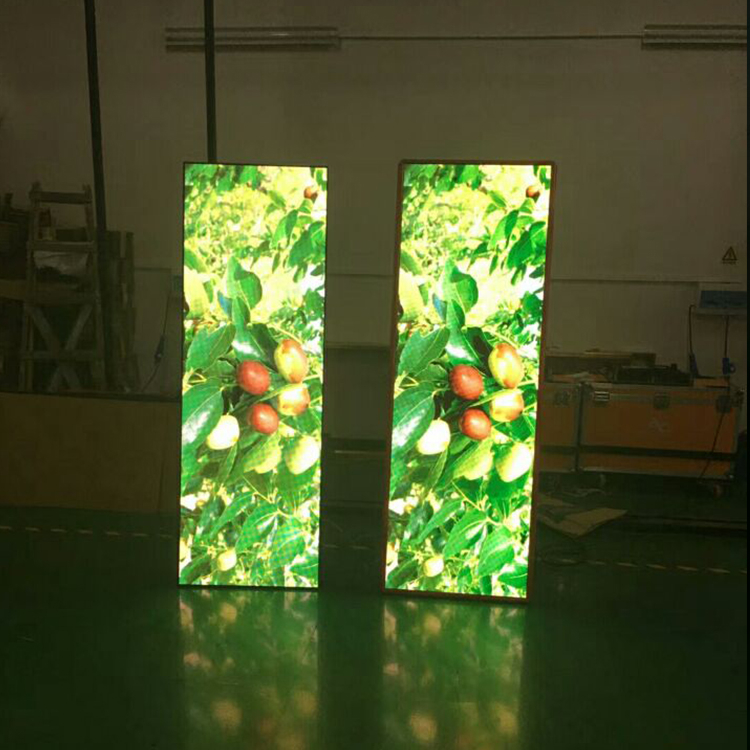

Vertical Portable Digital Display Board LED Video Screen
PRODUCT FEATURES:
1.Vertical Floor standing, standard size
2.Best view angle and high light transmittance
3.Wonderful uniformity, good color mixture and high brightness
4.Rigid and smart slim cabinet design
5. Effective and uniform heat dissipation
6. Reliable connector
7. Long lifespan: 100,000 Hours,it could be used for 22 years if run at 12 hours a day, 7 days a week
8. With free management content software to remote control every screens.
9. Application: Bank, airport, hotel, restaurant, store, supermarket,etc
10.Installation: Indoor, Wall-mounted or hanging
Specifications
| Pixel pitch(mm) | 2 | 2.5 | 3 | 4 | ||||||||
| Usage | Indoor | |||||||||||
| LED type(SMD) | 1415 | 2020 | 2020 | 2020 | ||||||||
| Module Size(mm) | 128x128 | 160x160 | 192x192 | 256x128 | ||||||||
| Module Resolution(dot) | 64x64 | 64x64 | 64x64 | 64x32 | ||||||||
| Module Pixel | 4096 | 4096 | 4096 | 2048 | ||||||||
| Pixel Density(dot/㎡) | 250000 | 160000 | 111111 | 62500 | ||||||||
| Best View Distance | 2-10m | 2.5-10m | 3-10m | 4-10m | ||||||||
| Screen size(W*H) mm | 512x1792 | 512x1920 | 640x1792 | 640x1920 | 480x1760 | 480x1920 | 640x1760 | 640x1920 | 576x1728 | 576x1920 | 512x1792 | 512x1920 |
| Screen Resolution(dot) | 256x896 | 256x960 | 320x896 | 320x960 | 192x704 | 192x768 | 256x704 | 256x768 | 192x576 | 192x640 | 128x448 | 128x480 |
| Brightnees(nits) | <1200 | |||||||||||
| View angle | 160°(H)/160°(V) | |||||||||||
| Gray scale | 16 bit | |||||||||||
| Refresh Rate | <1920Hz | |||||||||||
| Diving Mode | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/16 Scan | ||||||||
| Lifespan(H) | >100 000 | |||||||||||
| Power Comsumption(max.) | 550w/㎡ | 600w/㎡ | 600w/㎡ | 600w/㎡ | ||||||||
| Power Comsumption(ave.) | 180w/㎡ | 200w/㎡ | 200w/㎡ | 200w/㎡ | ||||||||
Environment
| Working Temperature | –20℃ ～ + 60℃ | |||||||||||
| Working Humidity | 10% ～90% | |||||||||||
| Storage Temperature | –35℃ ～ + 85℃ | |||||||||||
| Storage Humidity | 10% ～90% | |||||||||||
Material
| Cabinet | Metal Steel | |||||||||||
| Maintenance | Front-side access | |||||||||||
| Front panel | 3mm Acrylic panel | |||||||||||
| LED chip | Nationstar / King light | |||||||||||
| Power supply | Meanwell / G-energy | |||||||||||
| Controlling system | Novastar / Linsn / Colorlight | |||||||||||
| Installation | Indoor / Floor standing | |||||||||||
Service:
Can provide samples for testing and approval.
Short lead time
Warranty is 2 years, with extra spare parts for maintenance.
Remote calibration and installation assistant
On-Site installation assistant: Engineer Available in case that flight and accomodation is ready, plus labor cost
Assist customers to purchase with any other concerning products.
Why choose us?
The skilled manufacturer, experienced engineers and strict QC have earned a good reputation.
A professional sales team to guarantee samples quality, mass-production shipments and after-sales service.
Advanced production equipments.
Production capacity is the guarantee.
2 Year Products quality guaranteed, online support, On-Site assistant support if needed.
Shipping and payment:
Trade Terms: EXW,FOB,or CIF, CFR
Payment terms: By T/T or Western Union,50% deposit and 50% balance before shipment.
Lead-time: Around 7days depend on order quantity.
MOQ: Sample order is accepted.
Package: Bubble bag + Foam angle bead + Wooden box
Shipping: by international express as UPS, TNT, DHL, FEDEX, or by Sea.
